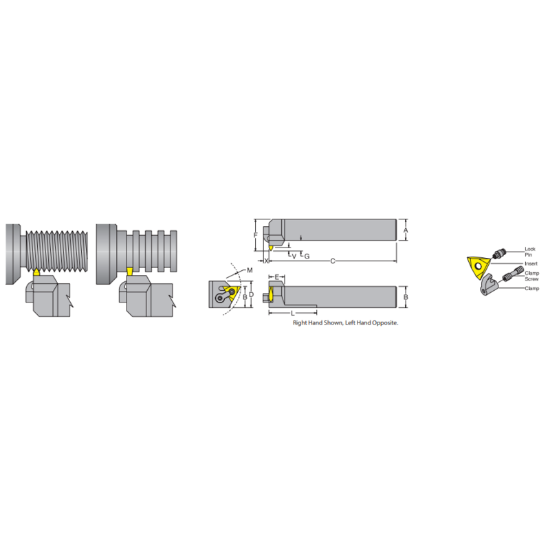

Picture of DORIAN MTHOR20-5D On Edge Square 1.250 Shank 6.000 OAL

DORIAN MTHOR20-5D On Edge Square 1.250 Shank 6.000 OAL

ANSI: MTHOR20-5D

ISO: MTHOR20-5D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR58188
Delivery date: 3-5 days
$120.81

Details

MTHO-A R/L Threading Toolholder- Style H - Gang Toolholder for Shallow Grooving or I.D. Threading for triangle TNMA inserts

Products specifications
Attribute name Attribute value
General Product Information
Application Ext.Threading
Package Size 1
Insert Type Positive
Insert Application General Purpose
Insert/Tool Tool
Shipping State Texas
Made In USA No
Dimensional Specifications
Overall Len 6.0000 152.40MM
Insert Size Ic 5
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 1.2500 31.75MM
Tool Over Hang 1.7500
Min Bore 3.0000
Tool Width 1.2500
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Triangle
Inter/Extern External
Insert Style ON EDGE
Hand R/L Right
Coolant Thru No
Fasteners & Connectors
Lock Pin NL-56
Clamp/Wedge CL-6
Clamp Screw XNS-36
