Picture of DORIAN MTHOR16-5D On Edge Square 1.000 Shank 6.000 OAL

DORIAN MTHOR16-5D On Edge Square 1.000 Shank 6.000 OAL

ANSI: MTHOR16-5D

ISO: MTHOR16-5D

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR58186
Delivery date: 3-5 days
$117.74

Details

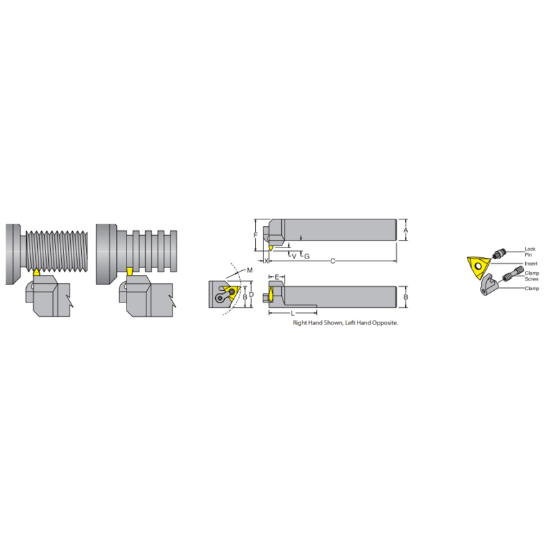

MTHO-A R/L Threading Toolholder- Style H - Gang Toolholder for Shallow Grooving or I.D. Threading for triangle TNMA inserts

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Ext.Threading
Package Size 1
Insert Type Positive
Shipping State Texas
Insert Application General Purpose
Made In USA No
Dimensional Specifications
Insert Size Ic 5
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 1.0000 25.40MM
Tool Over Hang 1.5000
Min Bore 3.0000
Tool Width 1.0000
Overall Len 6.0000 152.40MM
Cutting & Machining Properties
Coolant Thru No
Insert Shape/Cutter Pocket Shape Triangle
Insert Style ON EDGE
Hand R/L Right
Inter/Extern Int / Ext
Fasteners & Connectors
Lock Pin NL-56
Clamp/Wedge CL-6
Clamp Screw XNS-36
