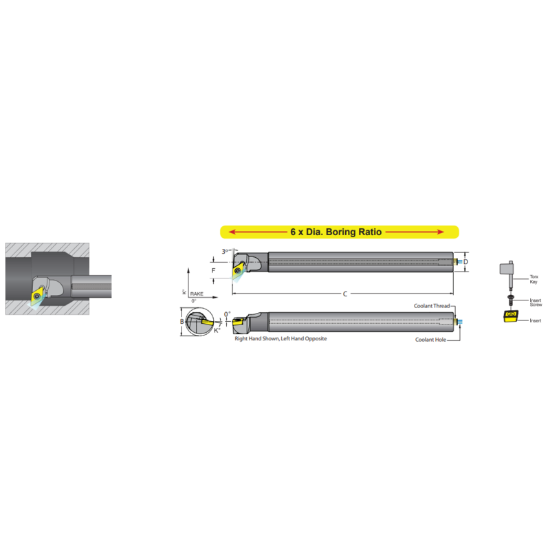

Picture of DORIAN E32M-U-SDUCL-11 Boring Bar 55.0° Carbide Round With One Flat 1.259 Shank 14.50 OAL

DORIAN E32M-U-SDUCL-11 Boring Bar 55.0° Carbide Round With One Flat 1.259 Shank 14.50 OAL

ANSI: E32M-U-SDUCL-11

ISO: E32M-U-SDUCL-11

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR60006
Delivery date: 3-5 days
$1,602.74

Features And Benefits

6xDiameter Boring Ratio (8xDiameter under favorable conditions) Thru-Coolant 1/2" (12mm) or larger bars have threaded ends for easy coolant connection

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Shipping State Texas
Insert Type Positive
Package Size 1
Application Int.Turning
Made In USA Yes
Insert/Tool Tool
Dimensional Specifications
Machine Side Connection Type Boring Bar
Machine Side Connection Size 1.2598 32.00MM
Lead Angle 93°
Tool Material Carbide
Overall Len 14.5000 368.30MM
Insert Size Ic 11 "32"
Shank/Pilot Dia 1.2598 32.00MM
Clearance Angle 30.0°
Cutting & Machining Properties
Hand R/L Left
Coolant Thru Yes
Inter/Extern Internal
Insert Shape/Cutter Pocket Shape 55.0°
Insert Style DC
