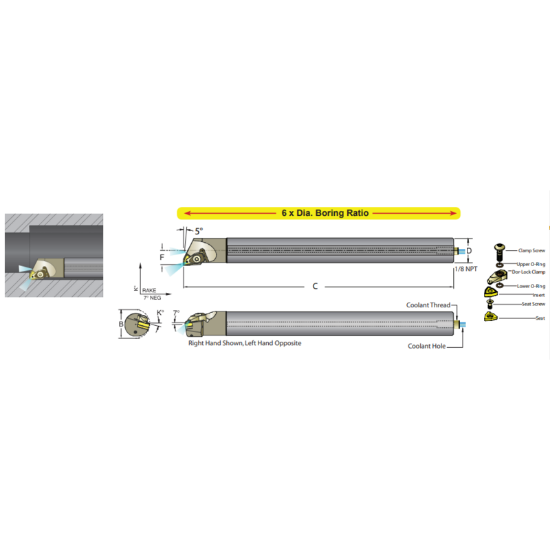

Picture of DORIAN E32M-U-ADWLNR-08 Boring Bar Trigon Carbide Round With One Flat 1.259 Shank 14.50 OAL

DORIAN E32M-U-ADWLNR-08 Boring Bar Trigon Carbide Round With One Flat 1.259 Shank 14.50 OAL

ANSI: E32M-U-ADWLNR-08

ISO: E32M-U-ADWLNR-08

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR60135
Delivery date: 3-5 days
$1,763.01

Features And Benefits

6xDiameter Boring Ratio (8xDiameter under favorable conditions) Thru-Coolant 1/2" (12mm) or larger bars have threaded ends for easy coolant connection

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Package Size 1
Application Int.Turning
Insert Application General Purpose
Insert Type Negative
Insert/Tool Tool
Shipping State Texas
Dimensional Specifications
Insert Size Ic 12 "43"
Overall Len 14.5000 368.30MM
Shank/Pilot Dia 1.2598 32.00MM
Lead Angle 95°
Machine Side Connection Type Boring Bar
Machine Side Connection Size 1.2598 32.00MM
Tool Material Carbide
Cutting & Machining Properties
Insert Style WN
Inter/Extern Internal
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Trigon
Hand R/L Right
