Picture of DORIAN E25M-T-ADDUNR-11 Boring Bar 55.0° Carbide Round With One Flat 0.984 Shank 12.00 OAL

DORIAN E25M-T-ADDUNR-11 Boring Bar 55.0° Carbide Round With One Flat 0.984 Shank 12.00 OAL

ANSI: E25M-T-ADDUNR-11

ISO: E25M-T-ADDUNR-11

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR60101
Delivery date: 3-5 days
$1,137.35

Features And Benefits

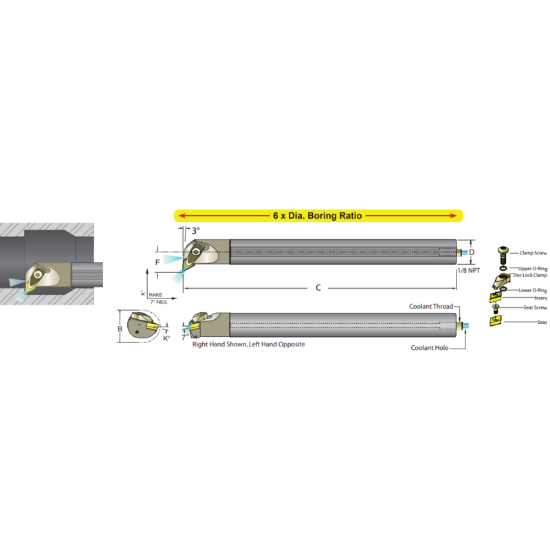

6xDiameter Boring Ratio (8xDiameter under favorable conditions) Thru-Coolant 1/2" (12mm) or larger bars have threaded ends for easy coolant connection

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Insert Type Negative
Insert/Tool Tool
Application Int.Turning
Made In USA Yes
Shipping State Texas
Package Size 1
Dimensional Specifications
Insert Size Ic 11 "33"
Machine Side Connection Type Boring Bar
Machine Side Connection Size 0.9843 25.00MM
Clearance Angle 30.0°
Tool Material Carbide
Overall Len 12.0000 304.80MM
Lead Angle 93.5°
Shank/Pilot Dia 0.9843 25.00MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 55.0°
Insert Style DN
Coolant Thru Yes
Inter/Extern Internal
Hand R/L Right
