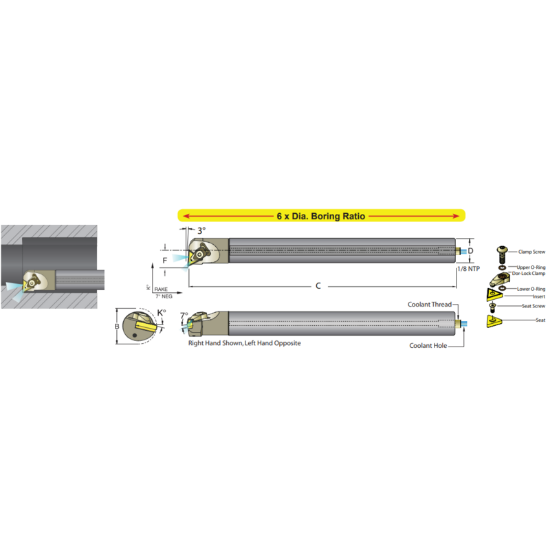

DORIAN E25M-R-ADTUNL-16 Boring Bar Triangle Carbide Round With One Flat 0.984 Shank 8.000 OAL

ANSI: E25M-R-ADTUNL-16

ISO: E25M-R-ADTUNL-16

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR60086
Delivery date: 3-5 days
$774.95

Features And Benefits

6xDiameter Boring Ratio (8xDiameter under favorable conditions) Thru-Coolant 1/2" (12mm) or larger bars have threaded ends for easy coolant connection

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Insert Type Negative
Package Size 1
Made In USA Yes
Shipping State Texas
Insert/Tool Tool
Application Int.Turning
Dimensional Specifications
Machine Side Connection Type Boring Bar
Machine Side Connection Size 0.9843 25.00MM
Shank/Pilot Dia 0.9843 25.00MM
Lead Angle 93°
Tool Material Carbide
Insert Size Ic 16 "33"
Overall Len 8.0000 203.20MM
Cutting & Machining Properties
Inter/Extern Internal
Hand R/L Left
Insert Style TN
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Triangle
