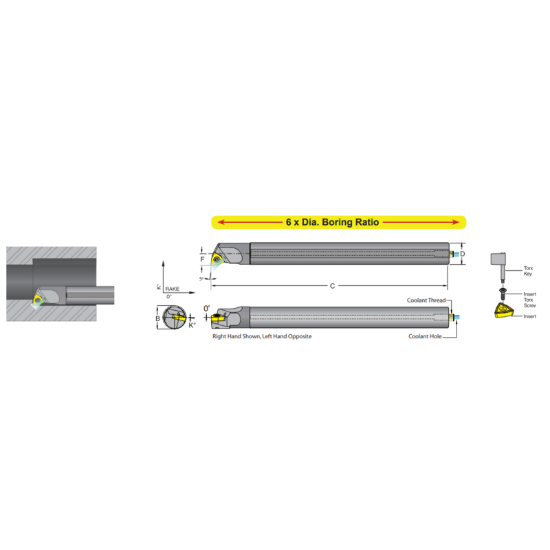

Picture of DORIAN E20U-SWLCR-4 Boring Bar Trigon Carbide Round With One Flat 1.250 Shank 14.50 OAL

DORIAN E20U-SWLCR-4 Boring Bar Trigon Carbide Round With One Flat 1.250 Shank 14.50 OAL

ANSI: E20U-SWLCR-4

ISO: E20U-SWLCR-4

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR60055
Delivery date: 3-5 days
$1,602.74

Features And Benefits

6xDiameter Boring Ratio (8xDiameter under favorable conditions) Thru-Coolant 1/2" (12mm) or larger bars have threaded ends for easy coolant connection

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Made In USA Yes
Insert Application General Purpose
Insert Type Positive
Application Int.Turning
Package Size 1
Insert/Tool Tool
Dimensional Specifications
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Tool Material Carbide
Machine Side Connection Type Boring Bar
Machine Side Connection Size 1.2500 31.75MM
Insert Size Ic 43
Lead Angle 95°
Overall Len 14.5000 368.30MM
Cutting & Machining Properties
Insert Style WC
Hand R/L Right
Insert Shape/Cutter Pocket Shape Trigon
Inter/Extern Internal
Coolant Thru Yes
