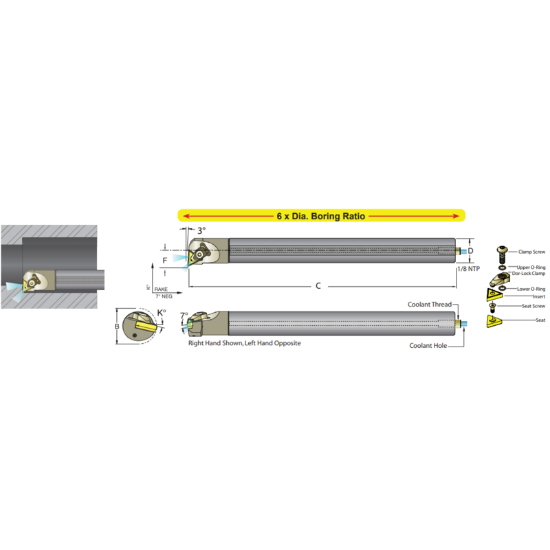

Picture of DORIAN E20U-ADTUNL-3 Boring Bar Triangle Carbide Round With One Flat 1.250 Shank 14.50 OAL

DORIAN E20U-ADTUNL-3 Boring Bar Triangle Carbide Round With One Flat 1.250 Shank 14.50 OAL

ANSI: E20U-ADTUNL-3

ISO: E20U-ADTUNL-3

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR60084
Delivery date: 3-5 days
$1,763.01

Features And Benefits

6xDiameter Boring Ratio (8xDiameter under favorable conditions) Thru-Coolant 1/2" (12mm) or larger bars have threaded ends for easy coolant connection

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application General Purpose
Insert Type Negative
Shipping State Texas
Made In USA Yes
Package Size 1
Application Int.Turning
Dimensional Specifications
Overall Len 14.5000 368.30MM
Machine Side Connection Type Boring Bar
Machine Side Connection Size 1.2500 31.75MM
Lead Angle 93°
Tool Material Carbide
Insert Size Ic 16 "33"
Shank/Pilot Dia 1.2500 31.75MM - 1-1/4
Cutting & Machining Properties
Coolant Thru Yes
Insert Style TN
Hand R/L Left
Inter/Extern Internal
Insert Shape/Cutter Pocket Shape Triangle
