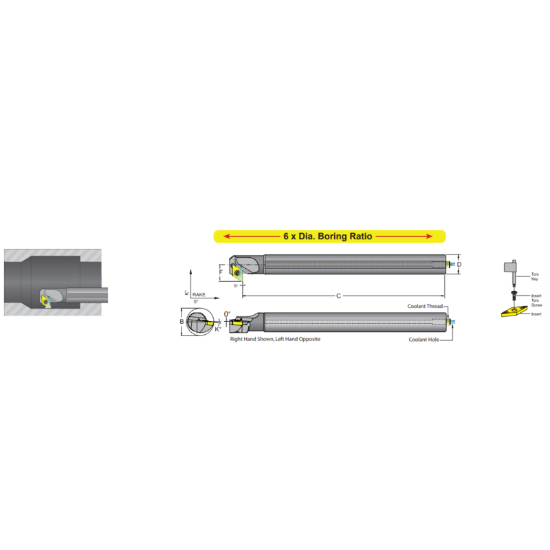

Picture of DORIAN E20M-S-SDXCL-11 Boring Bar 55.0° Carbide Round With One Flat 0.787 Shank 10.50 OAL

DORIAN E20M-S-SDXCL-11 Boring Bar 55.0° Carbide Round With One Flat 0.787 Shank 10.50 OAL

ANSI: E20M-S-SDXCL-11

ISO: E20M-S-SDXCL-11

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR60020
Delivery date: 3-5 days
$580.25

Features And Benefits

6xDiameter Boring Ratio (8xDiameter under favorable conditions) Thru-Coolant 1/2" (12mm) or larger bars have threaded ends for easy coolant connection

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application General Purpose
Package Size 1
Shipping State Texas
Insert Type Positive
Application Int.Turning
Made In USA Yes
Dimensional Specifications
Machine Side Connection Type Boring Bar
Tool Material Carbide
Insert Size Ic 11 "32"
Lead Angle 93° B
Shank/Pilot Dia 0.7874 20.00MM
Machine Side Connection Size 0.7874 20.00MM
Overall Len 10.5000 266.70MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 55.0°
Insert Style DC
Hand R/L Left
Inter/Extern Internal
Coolant Thru Yes
