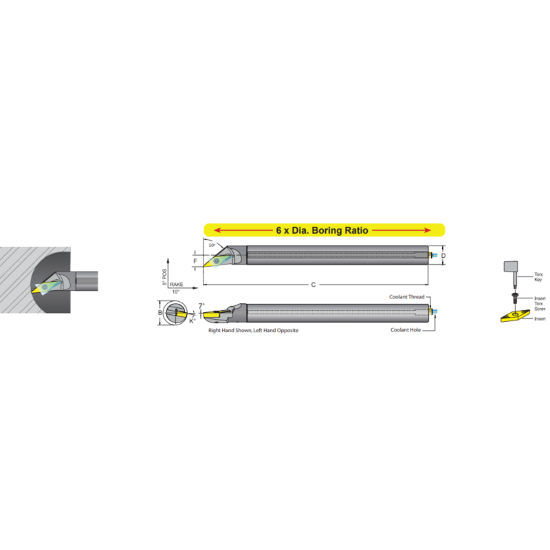

Picture of DORIAN E16M-S-SVMCR-11 Boring Bar 35.0° Carbide Round With One Flat 0.629 Shank 10.50 OAL

DORIAN E16M-S-SVMCR-11 Boring Bar 35.0° Carbide Round With One Flat 0.629 Shank 10.50 OAL

ANSI: E16M-S-SVMCR-11

ISO: E16M-S-SVMCR-11

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR59817
Delivery date: 3-5 days
$412.11

Features And Benefits

6xDiameter Boring Ratio (8xDiameter under favorable conditions) Thru-Coolant 1/2" (12mm) or larger bars have threaded ends for easy coolant connection

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Shipping State Texas
Insert/Tool Tool
Insert Type Positive
Application Int.Turning
Package Size 1
Insert Application General Purpose
Dimensional Specifications
Insert Size Ic 11 "21"
Overall Len 10.5000 266.70MM
Machine Side Connection Size 0.6299 16.00MM
Lead Angle 50°
Shank/Pilot Dia 0.6299 16.00MM
Machine Side Connection Type Boring Bar
Tool Material Carbide
Cutting & Machining Properties
Hand R/L Right
Coolant Thru Yes
Insert Style VC
Inter/Extern Internal
Insert Shape/Cutter Pocket Shape 35.0°
