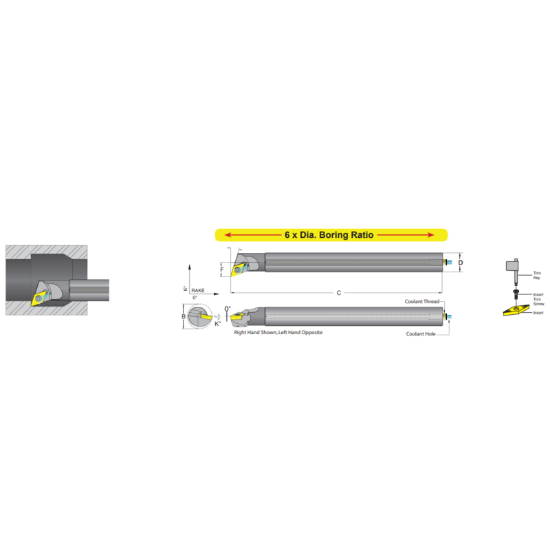

Picture of DORIAN E16M-M-SDQCR-07 Boring Bar 55.0° Carbide Round With One Flat 0.629 Shank 6.250 OAL

DORIAN E16M-M-SDQCR-07 Boring Bar 55.0° Carbide Round With One Flat 0.629 Shank 6.250 OAL

ANSI: E16M-M-SDQCR-07

ISO: E16M-M-SDQCR-07

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR59705
Delivery date: 3-5 days
$286.57

Features And Benefits

6xDiameter Boring Ratio (8xDiameter under favorable conditions) Thru-Coolant 1/2" (12mm) or larger bars have threaded ends for easy coolant connection

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Shipping State Texas
Made In USA Yes
Insert/Tool Tool
Insert Application General Purpose
Insert Type Positive
Application Int.Turning
Dimensional Specifications
Tool Material Carbide
Clearance Angle 15.5°
Overall Len 6.2500 158.75MM
Lead Angle 107.5°
Machine Side Connection Type Boring Bar
Insert Size Ic 07 "21"
Machine Side Connection Size 0.6299 16.00MM
Shank/Pilot Dia 0.6299 16.00MM
Cutting & Machining Properties
Hand R/L Right
Inter/Extern Internal
Insert Shape/Cutter Pocket Shape 55.0°
Insert Style DC
Coolant Thru Yes
