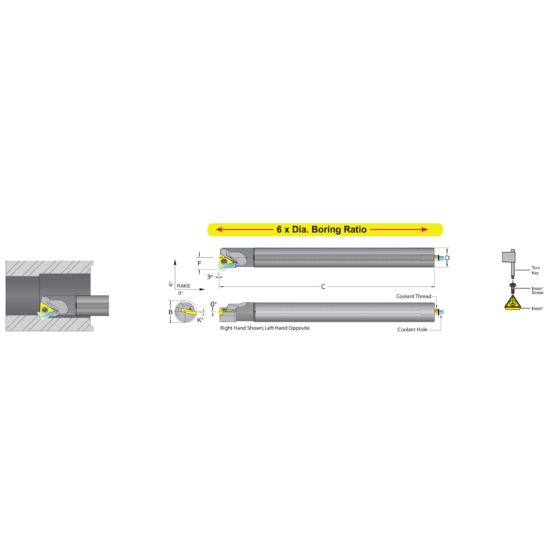

Picture of DORIAN E12M-R-STUCR-11 Boring Bar Triangle Carbide Round With One Flat 0.472 Shank 8.000 OAL

DORIAN E12M-R-STUCR-11 Boring Bar Triangle Carbide Round With One Flat 0.472 Shank 8.000 OAL

ANSI: E12M-R-STUCR-11

ISO: E12M-R-STUCR-11

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR59773
Delivery date: 3-5 days
$298.94

Features And Benefits

6xDiameter Boring Ratio (8xDiameter under favorable conditions) Thru-Coolant 1/2" (12mm) or larger bars have threaded ends for easy coolant connection

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Shipping State Texas
Made In USA Yes
Insert Application General Purpose
Insert/Tool Tool
Insert Type Positive
Application Int.Turning
Dimensional Specifications
Lead Angle 93°
Tool Material Carbide
Shank/Pilot Dia 0.4724 12.00MM
Machine Side Connection Type Boring Bar
Machine Side Connection Size 0.4724 12.00MM
Insert Size Ic 11 "21"
Overall Len 8.0000 203.20MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Triangle
Hand R/L Right
Insert Style TC
Coolant Thru Yes
Inter/Extern Internal
