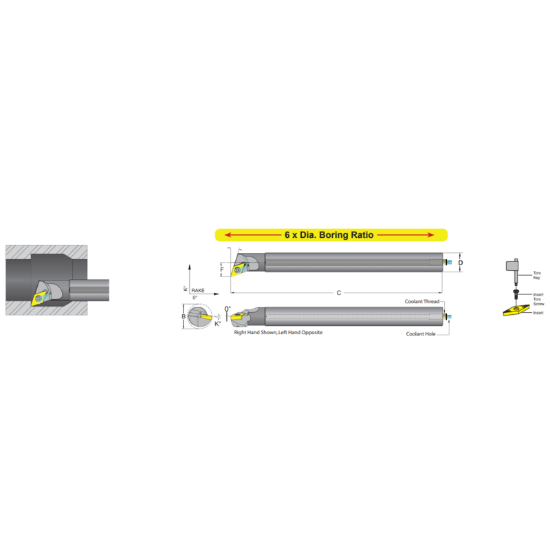

Picture of DORIAN E12M-R-SDQCR-07 Boring Bar 55.0° Carbide Round With One Flat 0.472 Shank 8.000 OAL

DORIAN E12M-R-SDQCR-07 Boring Bar 55.0° Carbide Round With One Flat 0.472 Shank 8.000 OAL

ANSI: E12M-R-SDQCR-07

ISO: E12M-R-SDQCR-07

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR59701
Delivery date: 3-5 days
$298.94

Features And Benefits

6xDiameter Boring Ratio (8xDiameter under favorable conditions) Thru-Coolant 1/2" (12mm) or larger bars have threaded ends for easy coolant connection

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Made In USA Yes
Insert Type Positive
Application Int.Turning
Insert/Tool Tool
Shipping State Texas
Package Size 1
Dimensional Specifications
Machine Side Connection Type Boring Bar
Clearance Angle 15.5°
Insert Size Ic 07 "21"
Overall Len 8.0000 203.20MM
Lead Angle 107.5°
Tool Material Carbide
Shank/Pilot Dia 0.4724 12.00MM
Machine Side Connection Size 0.4724 12.00MM
Cutting & Machining Properties
Inter/Extern Internal
Insert Style DC
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape 55.0°
Hand R/L Right
