Picture of DORIAN E12M-K-SCLPR-06 Boring Bar 80.0° Carbide Round With One Flat 0.472 Shank 5.000 OAL

DORIAN E12M-K-SCLPR-06 Boring Bar 80.0° Carbide Round With One Flat 0.472 Shank 5.000 OAL

ANSI: E12M-K-SCLPR-06

ISO: E12M-K-SCLPR-06

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR59641
Delivery date: 3-5 days
$227.01

Features And Benefits

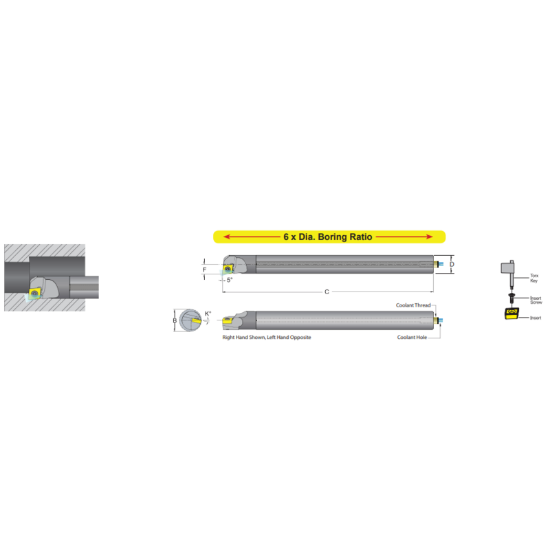

6xDiameter Boring Ratio (8xDiameter under favorable conditions) Thru-Coolant 1/2" (12mm) or larger bars have threaded ends for easy coolant connection

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Int.Turning
Made In USA Yes
Shipping State Texas
Package Size 1
Insert Application General Purpose
Insert/Tool Tool
Dimensional Specifications
Lead Angle 95°
Tool Material Carbide
Shank/Pilot Dia 0.4724 12.00MM
Overall Len 5.0000 127.00MM
Machine Side Connection Size 0.4724 12.00MM
Insert Size Ic 06 "21"
Machine Side Connection Type Boring Bar
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 80.0°
Hand R/L Right
Insert Style CP
Coolant Thru Yes
Inter/Extern Internal
