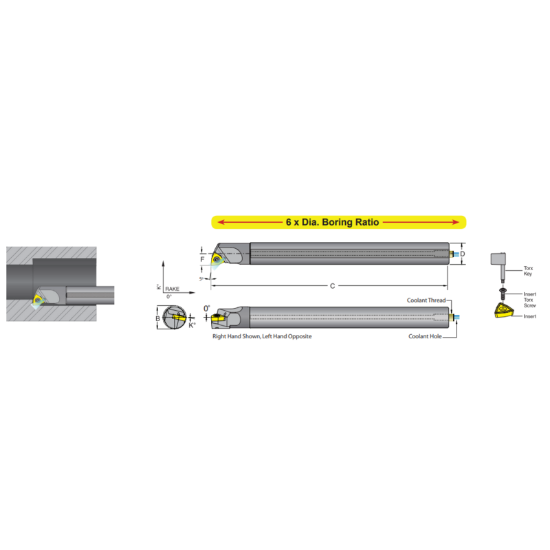

Picture of DORIAN E10S-SWLCL-2 Boring Bar Trigon Carbide Round With One Flat 0.625 Shank 10.00 OAL

DORIAN E10S-SWLCL-2 Boring Bar Trigon Carbide Round With One Flat 0.625 Shank 10.00 OAL

ANSI: E10S-SWLCL-2

ISO: E10S-SWLCL-2

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR59900
Delivery date: 3-5 days
$412.11

Features And Benefits

6xDiameter Boring Ratio (8xDiameter under favorable conditions) Thru-Coolant 1/2" (12mm) or larger bars have threaded ends for easy coolant connection

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application General Purpose
Made In USA Yes
Shipping State Texas
Package Size 1
Insert Type Positive
Application Int.Turning
Dimensional Specifications
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Machine Side Connection Type Boring Bar
Overall Len 10.0000 254.00MM
Lead Angle 95°
Machine Side Connection Size 0.6250 15.88MM
Insert Size Ic 21
Tool Material Carbide
Cutting & Machining Properties
Insert Style WC
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Trigon
Inter/Extern Internal
Hand R/L Left
