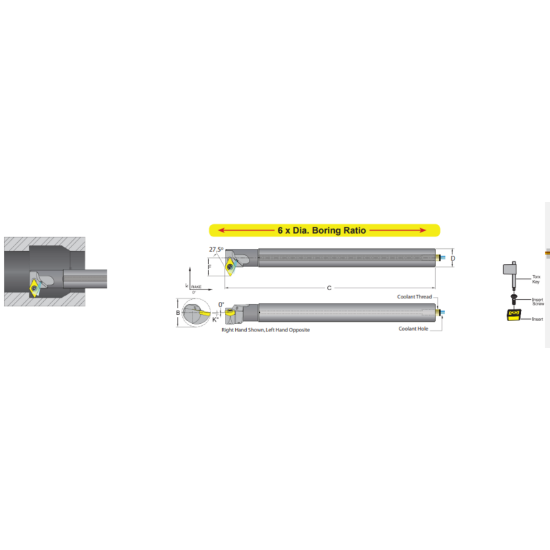

Picture of DORIAN E10S-SDNCL-2 Boring Bar 55.0° Carbide Round With One Flat 0.625 Shank 10.00 OAL

DORIAN E10S-SDNCL-2 Boring Bar 55.0° Carbide Round With One Flat 0.625 Shank 10.00 OAL

ANSI: E10S-SDNCL-2

ISO: E10S-SDNCL-2

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR59688
Delivery date: 3-5 days
$412.11

Features And Benefits

6xDiameter Boring Ratio (8xDiameter under favorable conditions) Thru-Coolant 1/2" (12mm) or larger bars have threaded ends for easy coolant connection

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Shipping State Texas
Package Size 1
Insert Application General Purpose
Insert/Tool Tool
Insert Type Positive
Application Int.Turning
Dimensional Specifications
Tool Material Carbide
Overall Len 10.0000 254.00MM
Machine Side Connection Type Boring Bar
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Insert Size Ic 07 "21"
Lead Angle 27.5°
Machine Side Connection Size 0.6250 15.88MM
Cutting & Machining Properties
Inter/Extern Internal
Hand R/L Left
Insert Style DC
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape 55.0°
