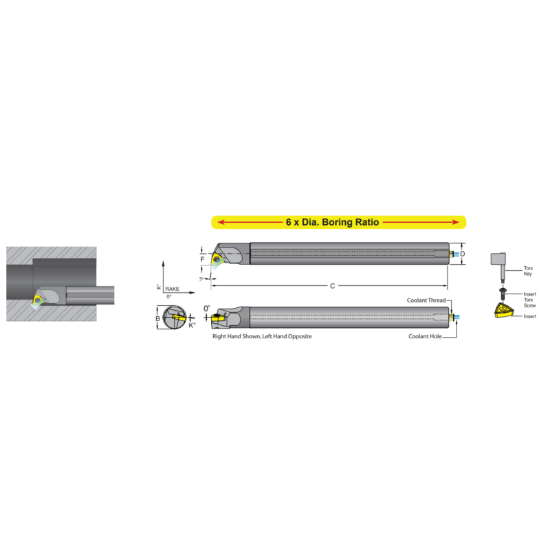

Picture of DORIAN E10M-SWLCL-3 Boring Bar Trigon Carbide Round With One Flat 0.625 Shank 6.250 OAL

DORIAN E10M-SWLCL-3 Boring Bar Trigon Carbide Round With One Flat 0.625 Shank 6.250 OAL

ANSI: E10M-SWLCL-3

ISO: E10M-SWLCL-3

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR59912
Delivery date: 3-5 days
$286.57

Features And Benefits

6xDiameter Boring Ratio (8xDiameter under favorable conditions) Thru-Coolant 1/2" (12mm) or larger bars have threaded ends for easy coolant connection

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert Type Positive
Application Int.Turning
Insert/Tool Tool
Made In USA Yes
Shipping State Texas
Insert Application General Purpose
Dimensional Specifications
Insert Size Ic 32
Machine Side Connection Size 0.6250 15.88MM
Lead Angle 95°
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Overall Len 6.2500 158.75MM
Tool Material Carbide
Machine Side Connection Type Boring Bar
Cutting & Machining Properties
Inter/Extern Internal
Insert Shape/Cutter Pocket Shape Trigon
Insert Style WC
Coolant Thru Yes
Hand R/L Left
