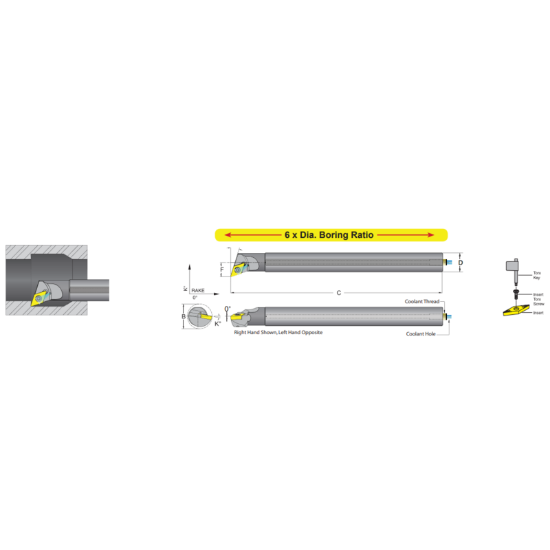

Picture of DORIAN E10M-SDQCL-2 Boring Bar 55.0° Carbide Round With One Flat 0.625 Shank 6.500 OAL

DORIAN E10M-SDQCL-2 Boring Bar 55.0° Carbide Round With One Flat 0.625 Shank 6.500 OAL

ANSI: E10M-SDQCL-2

ISO: E10M-SDQCL-2

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR59704
Delivery date: 3-5 days
$286.57

Features And Benefits

6xDiameter Boring Ratio (8xDiameter under favorable conditions) Thru-Coolant 1/2" (12mm) or larger bars have threaded ends for easy coolant connection

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application General Purpose
Package Size 1
Made In USA Yes
Shipping State Texas
Insert Type Positive
Application Int.Turning
Dimensional Specifications
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Lead Angle 107.5°
Machine Side Connection Type Boring Bar
Tool Material Carbide
Clearance Angle 15.5°
Insert Size Ic 07 "21"
Machine Side Connection Size 0.6250 15.88MM
Overall Len 6.5000 165.10MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 55.0°
Insert Style DC
Hand R/L Left
Inter/Extern Internal
Coolant Thru Yes
