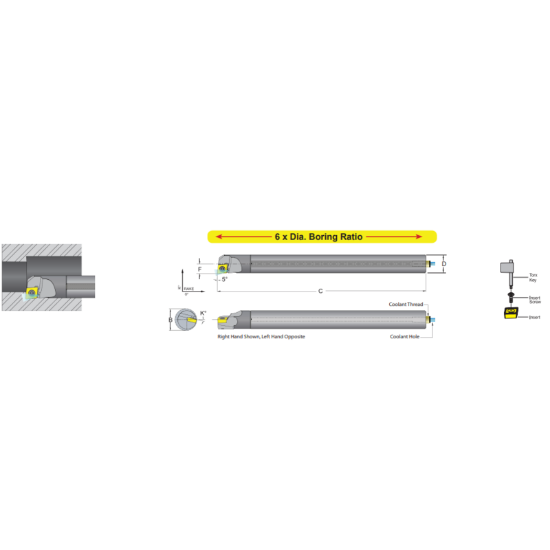

Picture of DORIAN E10M-SCLCR-2 Boring Bar 80.0° Carbide Round With One Flat 0.625 Shank 6.250 OAL

DORIAN E10M-SCLCR-2 Boring Bar 80.0° Carbide Round With One Flat 0.625 Shank 6.250 OAL

ANSI: E10M-SCLCR-2

ISO: E10M-SCLCR-2

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR59607
Delivery date: 3-5 days
$286.57

Features And Benefits

6xDiameter Boring Ratio (8xDiameter under favorable conditions) Thru-Coolant 1/2" (12mm) or larger bars have threaded ends for easy coolant connection

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Int.Turning
Shipping State Texas
Insert Application General Purpose
Package Size 1
Insert/Tool Tool
Made In USA Yes
Dimensional Specifications
Lead Angle 95°
Machine Side Connection Size 0.6250 15.88MM
Tool Material Carbide
Insert Size Ic 06 "21"
Machine Side Connection Type Boring Bar
Shank/Pilot Dia 0.6250 15.88MM - 5/8
Overall Len 6.2500 158.75MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 80.0°
Hand R/L Right
Insert Style CC
Coolant Thru Yes
Inter/Extern Internal
