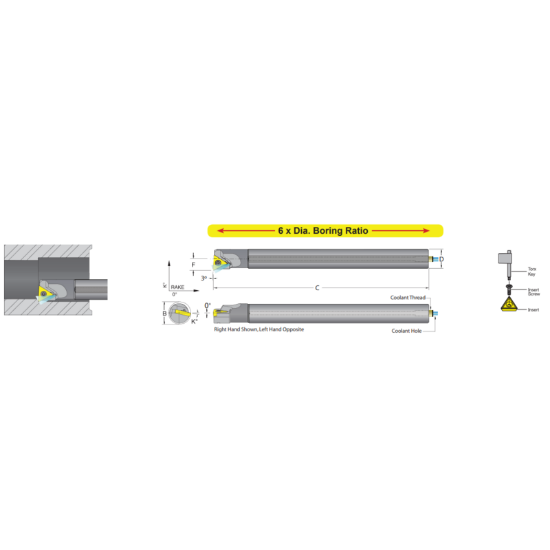

Picture of DORIAN E10M-M-STUPR-11 Boring Bar Triangle Carbide Round With One Flat 0.393 Shank 6.000 OAL

DORIAN E10M-M-STUPR-11 Boring Bar Triangle Carbide Round With One Flat 0.393 Shank 6.000 OAL

ANSI: E10M-M-STUPR-11

ISO: E10M-M-STUPR-11

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR59785
Delivery date: 3-5 days
$219.61

Features And Benefits

6xDiameter Boring Ratio (8xDiameter under favorable conditions) Thru-Coolant 1/2" (12mm) or larger bars have threaded ends for easy coolant connection

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Insert Application General Purpose
Insert/Tool Tool
Insert Type Positive
Application Int.Turning
Made In USA Yes
Package Size 1
Dimensional Specifications
Tool Material Carbide
Machine Side Connection Size 0.3937 10.00MM
Insert Size Ic 11 "21"
Lead Angle 95°
Shank/Pilot Dia 0.3937 10.00MM
Overall Len 6.0000 152.40MM
Machine Side Connection Type Boring Bar
Cutting & Machining Properties
Hand R/L Right
Insert Style TP
Coolant Thru Yes
Inter/Extern Internal
Insert Shape/Cutter Pocket Shape Triangle
