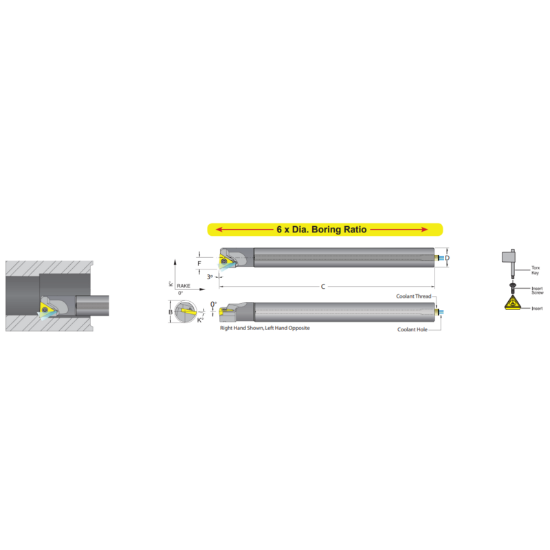

Picture of DORIAN E10M-M-STUCR-11 Boring Bar Triangle Carbide Round With One Flat 0.393 Shank 6.000 OAL

DORIAN E10M-M-STUCR-11 Boring Bar Triangle Carbide Round With One Flat 0.393 Shank 6.000 OAL

ANSI: E10M-M-STUCR-11

ISO: E10M-M-STUCR-11

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR59765
Delivery date: 3-5 days
$219.61

Features And Benefits

6xDiameter Boring Ratio (8xDiameter under favorable conditions) Thru-Coolant 1/2" (12mm) or larger bars have threaded ends for easy coolant connection

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Application Int.Turning
Insert Type Positive
Package Size 1
Insert/Tool Tool
Shipping State Texas
Made In USA Yes
Dimensional Specifications
Machine Side Connection Type Boring Bar
Machine Side Connection Size 0.3937 10.00MM
Insert Size Ic 11 "21"
Lead Angle 93°
Tool Material Carbide
Shank/Pilot Dia 0.3937 10.00MM
Overall Len 6.0000 152.40MM
Cutting & Machining Properties
Insert Style TC
Inter/Extern Internal
Insert Shape/Cutter Pocket Shape Triangle
Coolant Thru Yes
Hand R/L Right
