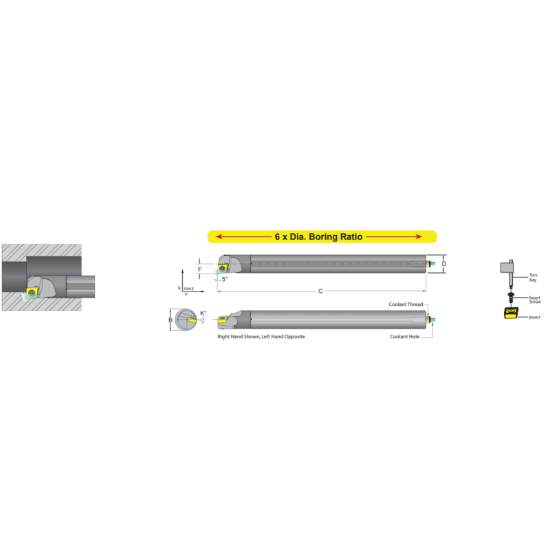

DORIAN E10M-M-SCLCR-06 Boring Bar 80.0° Carbide Round With One Flat 0.393 Shank 6.000 OAL

ANSI: E10M-M-SCLCR-06

ISO: E10M-M-SCLCR-06

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR59597
Delivery date: 3-5 days
$219.61

Features And Benefits

6xDiameter Boring Ratio (8xDiameter under favorable conditions) Thru-Coolant 1/2" (12mm) or larger bars have threaded ends for easy coolant connection

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Shipping State Texas
Application Int.Turning
Insert Type Positive
Insert/Tool Tool
Package Size 1
Insert Application General Purpose
Dimensional Specifications
Shank/Pilot Dia 0.3937 10.00MM
Overall Len 6.0000 152.40MM
Lead Angle 95°
Machine Side Connection Size 0.3937 10.00MM
Insert Size Ic 06 "21"
Machine Side Connection Type Boring Bar
Tool Material Carbide
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 80.0°
Hand R/L Right
Inter/Extern Internal
Coolant Thru Yes
Insert Style CC
