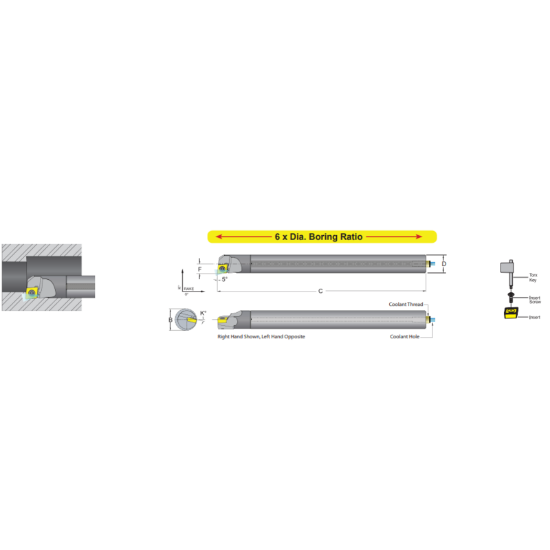

Picture of DORIAN E10M-M-SCLCL-06 Boring Bar 80.0° Carbide Round With One Flat 0.393 Shank 6.000 OAL

DORIAN E10M-M-SCLCL-06 Boring Bar 80.0° Carbide Round With One Flat 0.393 Shank 6.000 OAL

ANSI: E10M-M-SCLCL-06

ISO: E10M-M-SCLCL-06

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR59598
Delivery date: 3-5 days
$219.61

Features And Benefits

6xDiameter Boring Ratio (8xDiameter under favorable conditions) Thru-Coolant 1/2" (12mm) or larger bars have threaded ends for easy coolant connection

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application General Purpose
Made In USA Yes
Shipping State Texas
Package Size 1
Insert Type Positive
Application Int.Turning
Dimensional Specifications
Machine Side Connection Size 0.3937 10.00MM
Insert Size Ic 06 "21"
Machine Side Connection Type Boring Bar
Overall Len 6.0000 152.40MM
Shank/Pilot Dia 0.3937 10.00MM
Lead Angle 95°
Tool Material Carbide
Cutting & Machining Properties
Coolant Thru Yes
Inter/Extern Internal
Insert Shape/Cutter Pocket Shape 80.0°
Hand R/L Left
Insert Style CC
