Picture of DORIAN E08R-SDUCL-2 Boring Bar 55.0° Carbide Round With One Flat 0.500 Shank 8.000 OAL

DORIAN E08R-SDUCL-2 Boring Bar 55.0° Carbide Round With One Flat 0.500 Shank 8.000 OAL

ANSI: E08R-SDUCL-2

ISO: E08R-SDUCL-2

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR59720
Delivery date: 3-5 days
$298.94

Features And Benefits

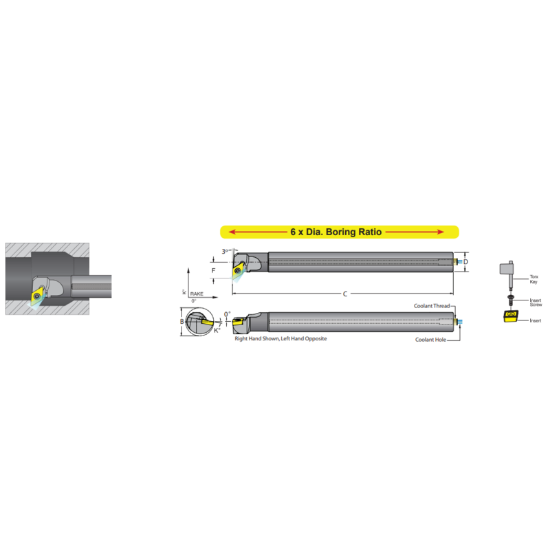

6xDiameter Boring Ratio (8xDiameter under favorable conditions) Thru-Coolant 1/2" (12mm) or larger bars have threaded ends for easy coolant connection

Products specifications
Attribute name Attribute value
General Product Information
Application Int.Turning
Made In USA Yes
Shipping State Texas
Package Size 1
Insert Application General Purpose
Insert/Tool Tool
Insert Type Positive
Dimensional Specifications
Lead Angle 93°
Tool Material Carbide
Machine Side Connection Type Boring Bar
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Clearance Angle 30.0°
Insert Size Ic 07 "21"
Machine Side Connection Size 0.5000 12.70MM
Overall Len 8.0000 203.20MM
Cutting & Machining Properties
Inter/Extern Internal
Hand R/L Left
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape 55.0°
Insert Style DC
