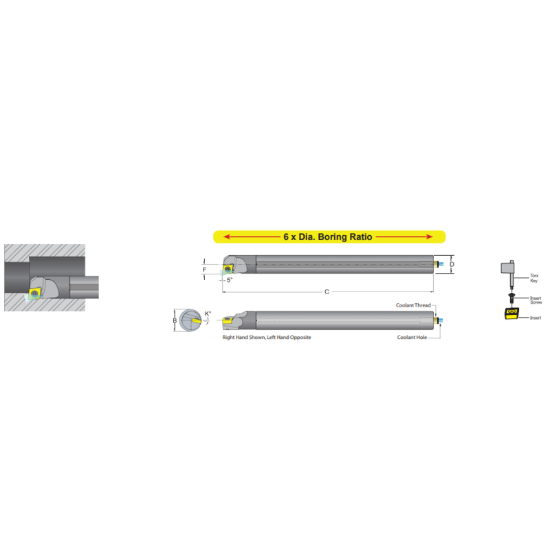

Picture of DORIAN E08R-SCLPR-3 Boring Bar 80.0° Carbide Round With One Flat 0.500 Shank 8.000 OAL

DORIAN E08R-SCLPR-3 Boring Bar 80.0° Carbide Round With One Flat 0.500 Shank 8.000 OAL

ANSI: E08R-SCLPR-3

ISO: E08R-SCLPR-3

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR59659
Delivery date: 3-5 days
$298.94

Features And Benefits

6xDiameter Boring Ratio (8xDiameter under favorable conditions) Thru-Coolant 1/2" (12mm) or larger bars have threaded ends for easy coolant connection

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Int.Turning
Package Size 1
Insert Application General Purpose
Shipping State Texas
Insert/Tool Tool
Made In USA Yes
Dimensional Specifications
Lead Angle 95°
Machine Side Connection Size 0.5000 12.70MM
Overall Len 8.0000 203.20MM
Insert Size Ic 09 "32"
Machine Side Connection Type Boring Bar
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Tool Material Carbide
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 80.0°
Hand R/L Right
Insert Style CP
Coolant Thru Yes
Inter/Extern Internal
