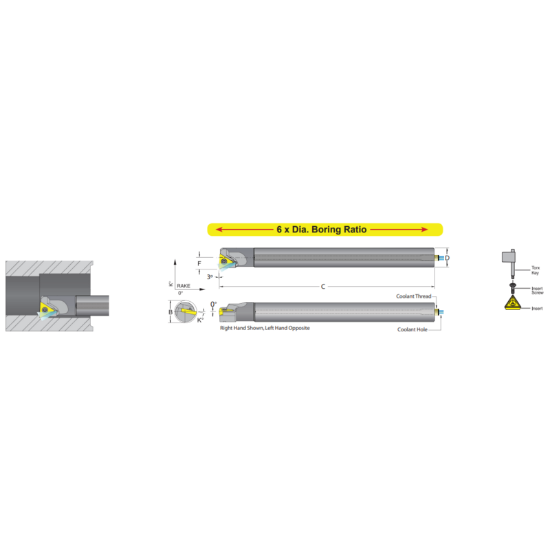

Picture of DORIAN E08M-K-STUCL-06 Boring Bar Triangle Carbide Round With One Flat 0.315 Shank 5.250 OAL

DORIAN E08M-K-STUCL-06 Boring Bar Triangle Carbide Round With One Flat 0.315 Shank 5.250 OAL

ANSI: E08M-K-STUCL-06

ISO: E08M-K-STUCL-06

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR59758
Delivery date: 3-5 days
$202.44

Features And Benefits

6xDiameter Boring Ratio (8xDiameter under favorable conditions) Thru-Coolant 1/2" (12mm) or larger bars have threaded ends for easy coolant connection

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Insert Type Positive
Application Int.Turning
Package Size 1
Made In USA Yes
Shipping State Texas
Insert/Tool Tool
Dimensional Specifications
Insert Size Ic 1.21
Machine Side Connection Type Boring Bar
Lead Angle 93°
Tool Material Carbide
Machine Side Connection Size 0.3150 8.00MM
Overall Len 5.2500 133.35MM
Shank/Pilot Dia 0.3150 8.00MM
Cutting & Machining Properties
Insert Style TC
Hand R/L Left
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape Triangle
Inter/Extern Internal
