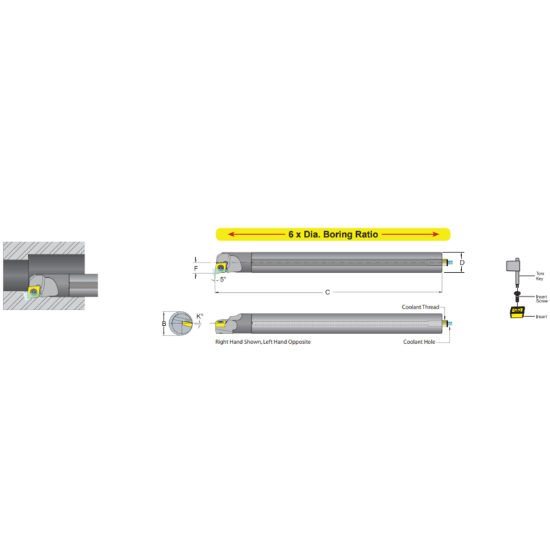

Picture of DORIAN E08M-K-SCLDR-04 Boring Bar 80.0° Carbide Round With One Flat 0.315 Shank 5.250 OAL

DORIAN E08M-K-SCLDR-04 Boring Bar 80.0° Carbide Round With One Flat 0.315 Shank 5.250 OAL

ANSI: E08M-K-SCLDR-04

ISO: E08M-K-SCLDR-04

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR59593
Delivery date: 3-5 days
$202.44

Features And Benefits

6xDiameter Boring Ratio (8xDiameter under favorable conditions) Thru-Coolant 1/2" (12mm) or larger bars have threaded ends for easy coolant connection

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Int.Turning
Package Size 1
Insert Application General Purpose
Insert/Tool Tool
Made In USA Yes
Shipping State Texas
Dimensional Specifications
Overall Len 5.2500 133.35MM
Lead Angle 95°
Insert Size Ic 1.51
Tool Material Carbide
Machine Side Connection Size 0.3150 8.00MM
Machine Side Connection Type Boring Bar
Shank/Pilot Dia 0.3150 8.00MM
Cutting & Machining Properties
Inter/Extern Internal
Insert Style CD
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape 80.0°
Hand R/L Right
