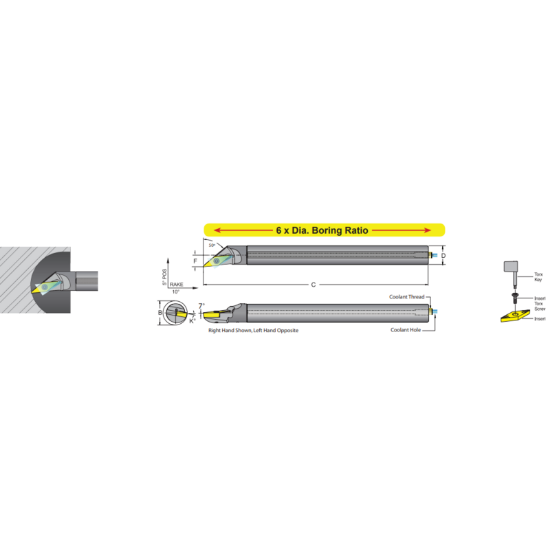

Picture of DORIAN E08K-SVMCL-2 Boring Bar 35.0° Carbide Round With One Flat 0.500 Shank 5.500 OAL

DORIAN E08K-SVMCL-2 Boring Bar 35.0° Carbide Round With One Flat 0.500 Shank 5.500 OAL

ANSI: E08K-SVMCL-2

ISO: E08K-SVMCL-2

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR59804
Delivery date: 3-5 days
$227.01

Features And Benefits

6xDiameter Boring Ratio (8xDiameter under favorable conditions) Thru-Coolant 1/2" (12mm) or larger bars have threaded ends for easy coolant connection

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application General Purpose
Package Size 1
Made In USA Yes
Shipping State Texas
Insert Type Positive
Application Int.Turning
Dimensional Specifications
Machine Side Connection Type Boring Bar
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Tool Material Carbide
Insert Size Ic 11
Machine Side Connection Size 0.5000 12.70MM
Lead Angle 50°
Overall Len 5.5000 139.70MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 35.0°
Hand R/L Left
Insert Style VC
Inter/Extern Internal
Coolant Thru Yes
