Picture of DORIAN E06M-STUPL-2 Boring Bar Triangle Carbide Round With One Flat 0.375 Shank 6.000 OAL

DORIAN E06M-STUPL-2 Boring Bar Triangle Carbide Round With One Flat 0.375 Shank 6.000 OAL

ANSI: E06M-STUPL-2

ISO: E06M-STUPL-2

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR59784
Delivery date: 3-5 days
$219.61

Features And Benefits

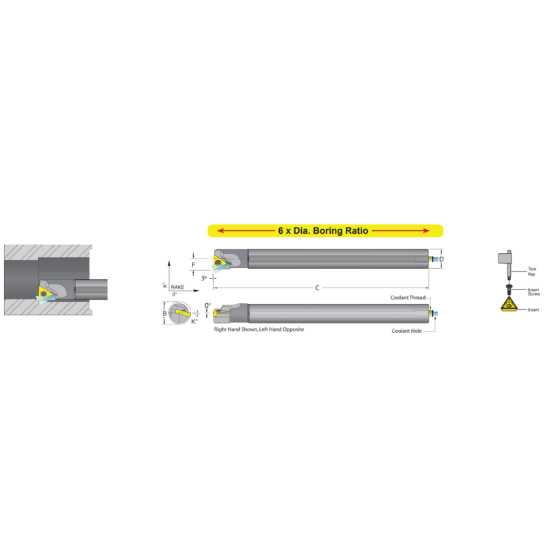

6xDiameter Boring Ratio (8xDiameter under favorable conditions) Thru-Coolant 1/2" (12mm) or larger bars have threaded ends for easy coolant connection

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Int.Turning
Made In USA Yes
Shipping State Texas
Insert Application General Purpose
Insert/Tool Tool
Package Size 1
Dimensional Specifications
Lead Angle 95°
Overall Len 6.0000 152.40MM
Machine Side Connection Type Boring Bar
Machine Side Connection Size 0.3750 9.53MM
Tool Material Carbide
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Insert Size Ic 11 "21"
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Triangle
Inter/Extern Internal
Hand R/L Left
Insert Style TP
Coolant Thru Yes
