Picture of DORIAN E06M-STUCR-1.2 Boring Bar Triangle Carbide Round With One Flat 0.375 Shank 6.000 OAL

DORIAN E06M-STUCR-1.2 Boring Bar Triangle Carbide Round With One Flat 0.375 Shank 6.000 OAL

ANSI: E06M-STUCR-1.2

ISO: E06M-STUCR-1.2

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR59759
Delivery date: 3-5 days
$219.61

Features And Benefits

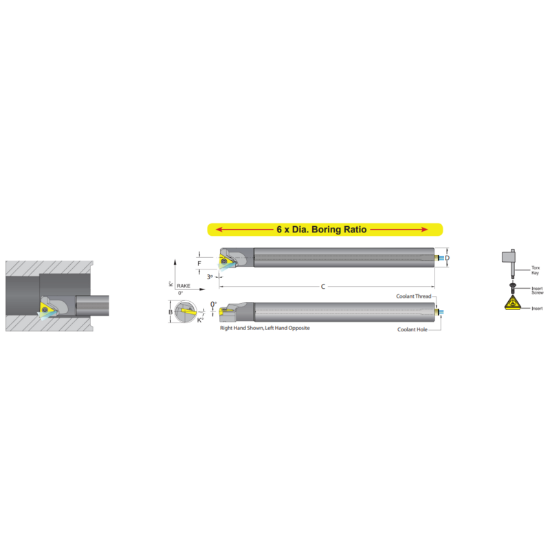

6xDiameter Boring Ratio (8xDiameter under favorable conditions) Thru-Coolant 1/2" (12mm) or larger bars have threaded ends for easy coolant connection

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Int.Turning
Package Size 1
Insert Application General Purpose
Shipping State Texas
Insert/Tool Tool
Made In USA Yes
Dimensional Specifications
Insert Size Ic 1.21
Machine Side Connection Type Boring Bar
Machine Side Connection Size 0.3750 9.53MM
Lead Angle 93°
Tool Material Carbide
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Overall Len 6.0000 152.40MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape Triangle
Insert Style TC
Hand R/L Right
Coolant Thru Yes
Inter/Extern Internal
