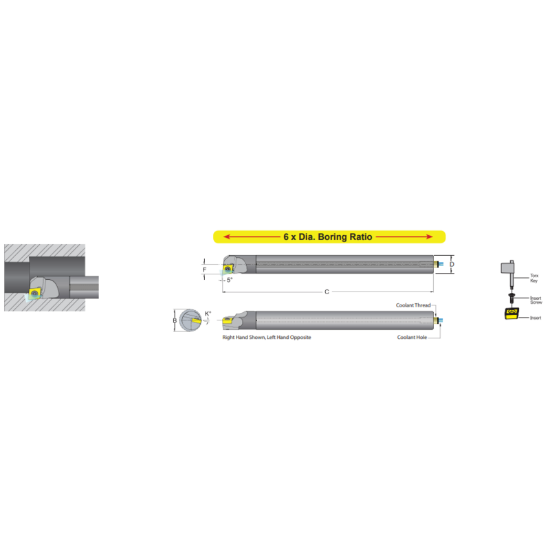

Picture of DORIAN E06M-SCLPR-2 Boring Bar 80.0° Carbide Round With One Flat 0.375 Shank 6.000 OAL

DORIAN E06M-SCLPR-2 Boring Bar 80.0° Carbide Round With One Flat 0.375 Shank 6.000 OAL

ANSI: E06M-SCLPR-2

ISO: E06M-SCLPR-2

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR59635
Delivery date: 3-5 days
$219.61

Features And Benefits

6xDiameter Boring Ratio (8xDiameter under favorable conditions) Thru-Coolant 1/2" (12mm) or larger bars have threaded ends for easy coolant connection

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Made In USA Yes
Insert Type Positive
Application Int.Turning
Insert Application General Purpose
Insert/Tool Tool
Package Size 1
Dimensional Specifications
Tool Material Carbide
Overall Len 6.0000 152.40MM
Lead Angle 95°
Insert Size Ic 06 "21"
Machine Side Connection Type Boring Bar
Machine Side Connection Size 0.3750 9.53MM
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 80.0°
Hand R/L Right
Inter/Extern Internal
Coolant Thru Yes
Insert Style CP
