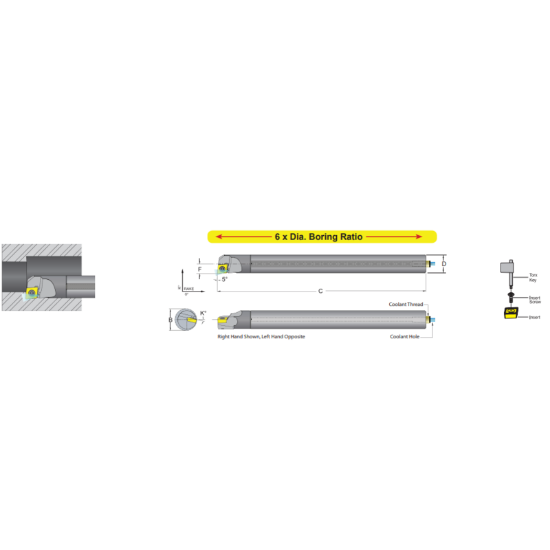

Picture of DORIAN E06M-SCLCL-2 Boring Bar 80.0° Carbide Round With One Flat 0.375 Shank 6.000 OAL

DORIAN E06M-SCLCL-2 Boring Bar 80.0° Carbide Round With One Flat 0.375 Shank 6.000 OAL

ANSI: E06M-SCLCL-2

ISO: E06M-SCLCL-2

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR59596
Delivery date: 3-5 days
$219.61

Features And Benefits

6xDiameter Boring Ratio (8xDiameter under favorable conditions) Thru-Coolant 1/2" (12mm) or larger bars have threaded ends for easy coolant connection

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Package Size 1
Insert/Tool Tool
Insert Application General Purpose
Application Int.Turning
Made In USA Yes
Shipping State Texas
Dimensional Specifications
Insert Size Ic 06 "21"
Machine Side Connection Type Boring Bar
Machine Side Connection Size 0.3750 9.53MM
Lead Angle 95°
Overall Len 6.0000 152.40MM
Tool Material Carbide
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Cutting & Machining Properties
Insert Style CC
Coolant Thru Yes
Inter/Extern Internal
Insert Shape/Cutter Pocket Shape 80.0°
Hand R/L Left
