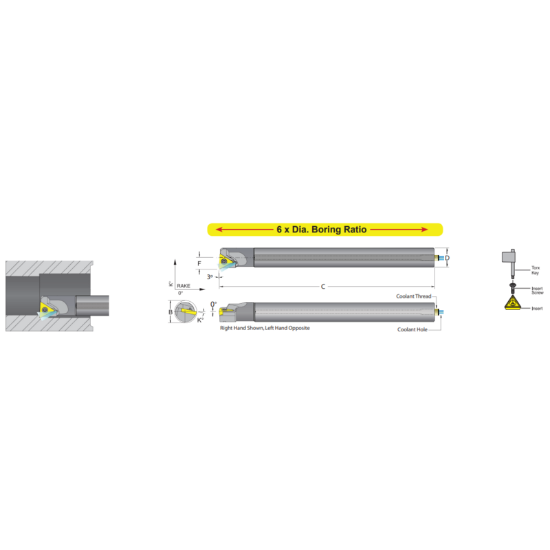

Picture of DORIAN E05K-STUCL-1.2 Boring Bar Triangle Carbide Round With One Flat 0.312 Shank 5.250 OAL

DORIAN E05K-STUCL-1.2 Boring Bar Triangle Carbide Round With One Flat 0.312 Shank 5.250 OAL

ANSI: E05K-STUCL-1.2

ISO: E05K-STUCL-1.2

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR59756
Delivery date: 3-5 days
$202.44

Features And Benefits

6xDiameter Boring Ratio (8xDiameter under favorable conditions) Thru-Coolant 1/2" (12mm) or larger bars have threaded ends for easy coolant connection

Products specifications
Attribute name Attribute value
General Product Information
Made In USA Yes
Shipping State Texas
Package Size 1
Insert/Tool Tool
Insert Application General Purpose
Insert Type Positive
Application Int.Turning
Dimensional Specifications
Shank/Pilot Dia 0.3125 7.94MM - 5/16
Lead Angle 93°
Tool Material Carbide
Insert Size Ic 1.21
Machine Side Connection Size 0.3125 7.94MM
Machine Side Connection Type Boring Bar
Overall Len 5.2500 133.35MM
Cutting & Machining Properties
Inter/Extern Internal
Hand R/L Left
Insert Shape/Cutter Pocket Shape Triangle
Insert Style TC
Coolant Thru Yes
