Picture of DORIAN E05K-SCLDR-1.5 Boring Bar 80.0° Carbide Round With One Flat 0.312 Shank 5.250 OAL

DORIAN E05K-SCLDR-1.5 Boring Bar 80.0° Carbide Round With One Flat 0.312 Shank 5.250 OAL

ANSI: E05K-SCLDR-1.5

ISO: E05K-SCLDR-1.5

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR59591
Delivery date: 3-5 days
$202.44

Features And Benefits

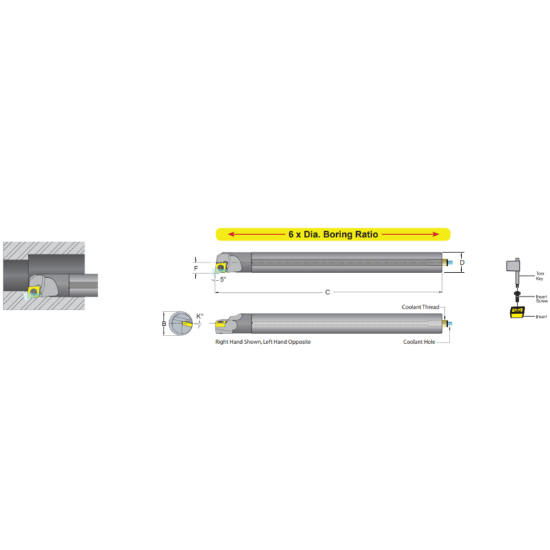

6xDiameter Boring Ratio (8xDiameter under favorable conditions) Thru-Coolant 1/2" (12mm) or larger bars have threaded ends for easy coolant connection

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Package Size 1
Shipping State Texas
Made In USA Yes
Insert Type Positive
Application Int.Turning
Insert Application General Purpose
Dimensional Specifications
Machine Side Connection Type Boring Bar
Machine Side Connection Size 0.3125 7.94MM
Insert Size Ic 1.5
Tool Material Carbide
Shank/Pilot Dia 0.3125 7.94MM - 5/16
Lead Angle 95°
Overall Len 5.2500 133.35MM
Cutting & Machining Properties
Insert Style CD
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape 80.0°
Hand R/L Right
Inter/Extern Internal
