Picture of DORIAN E04M-H-SCLDL-03 Boring Bar 80.0° Carbide Round With One Flat 0.157 Shank 5.000 OAL

DORIAN E04M-H-SCLDL-03 Boring Bar 80.0° Carbide Round With One Flat 0.157 Shank 5.000 OAL

ANSI: E04M-H-SCLDL-03

ISO: E04M-H-SCLDL-03

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR59578
Delivery date: 3-5 days
$172.76

Features And Benefits

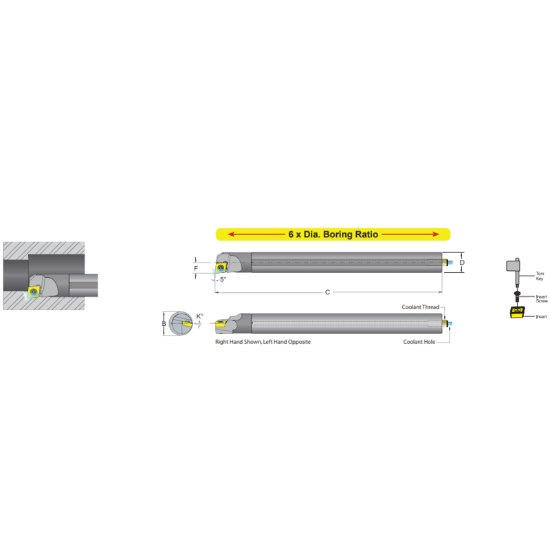

6xDiameter Boring Ratio (8xDiameter under favorable conditions) Thru-Coolant 1/2" (12mm) or larger bars have threaded ends for easy coolant connection

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert Type Positive
Application Int.Turning
Made In USA Yes
Insert/Tool Tool
Insert Application General Purpose
Shipping State Texas
Dimensional Specifications
Lead Angle 95°
Shank/Pilot Dia 0.1574 4.00MM
Overall Len 5.0000 127.00MM
Machine Side Connection Size 0.1575 4.00MM
Tool Material Carbide
Insert Size Ic 1.2
Machine Side Connection Type Boring Bar
Cutting & Machining Properties
Insert Style CD
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape 80.0°
Hand R/L Left
