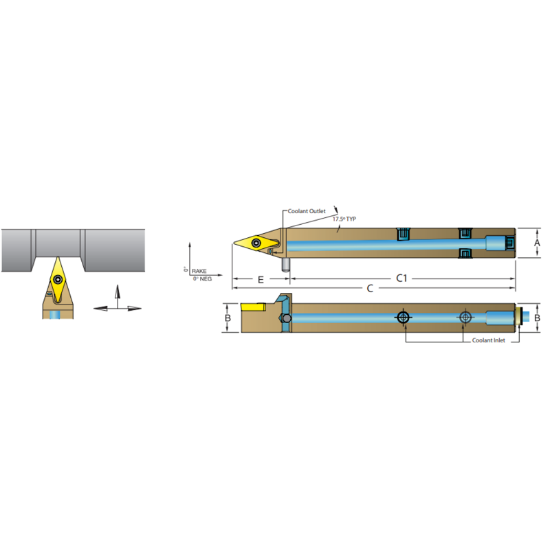

Picture of DORIAN ASVVCN1212-K16 35.0° Swiss Square 0.472 Shank 4.210 OAL

DORIAN ASVVCN1212-K16 35.0° Swiss Square 0.472 Shank 4.210 OAL

ANSI: ASVVCN1212-K16

ISO: ASVVCN1212-K16

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR60929
Delivery date: 3-5 days
$102.87

Features And Benefits

Qualified toolholder stop for repeatability when indexing an insert Zero tolerance when moved, locked & repositioned

Details

Quick-Disconnect Thru Coolant toolholder for swiss turning

Products specifications
Attribute name Attribute value
General Product Information
Application Ext.Turning, Swiss
Package Size 1
Shipping State Texas
Insert Application General Purpose
Made In USA No
Insert/Tool Tool
Insert Type Positive
Dimensional Specifications
Lead Angle 17.5°
Insert Size Ic 16 "33"
Shank/Pilot Dia 0.4724 12.00MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Tool Over Hang 0.9840
Tool Width 0.4720
Machine Side Connection Size 0.4724 12.00MM
Overall Len 4.2100 106.93MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 35.0°
Inter/Extern External
Hand R/L Neutral
Coolant Thru Yes
Insert Style VC
