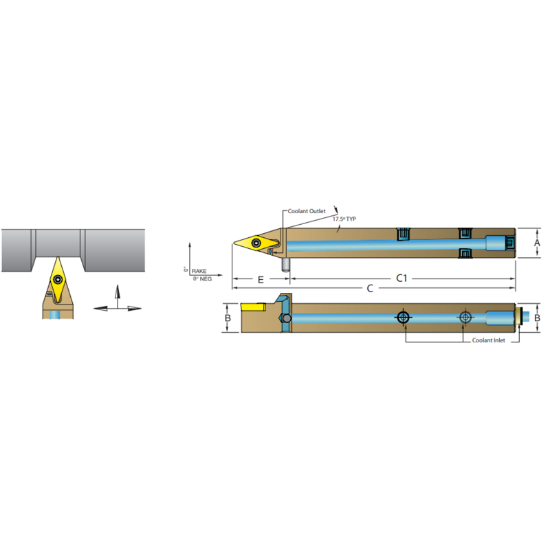

Picture of DORIAN ASVVCN1212-H11 35.0° Swiss Square 0.472 Shank 3.940 OAL

DORIAN ASVVCN1212-H11 35.0° Swiss Square 0.472 Shank 3.940 OAL

ANSI: ASVVCN1212-H11

ISO: ASVVCN1212-H11

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR60928
Delivery date: 3-5 days
$102.87

Features And Benefits

Qualified toolholder stop for repeatability when indexing an insert Zero tolerance when moved, locked & repositioned

Details

Quick-Disconnect Thru Coolant toolholder for swiss turning

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Application General Purpose
Application Swiss, Ext.Turning
Made In USA No
Package Size 1
Shipping State Texas
Insert Type Positive
Dimensional Specifications
Tool Material Steel
Machine Side Connection Type Stick Tool
Tool Over Hang 0.9840
Tool Width 0.4720
Machine Side Connection Size 0.4724 12.00MM
Lead Angle 17.5°
Shank/Pilot Dia 0.4724 12.00MM
Insert Size Ic 11 "21"
Overall Len 3.9400 100.08MM
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 35.0°
Inter/Extern External
Insert Style VC
Hand R/L Neutral
Coolant Thru Yes
