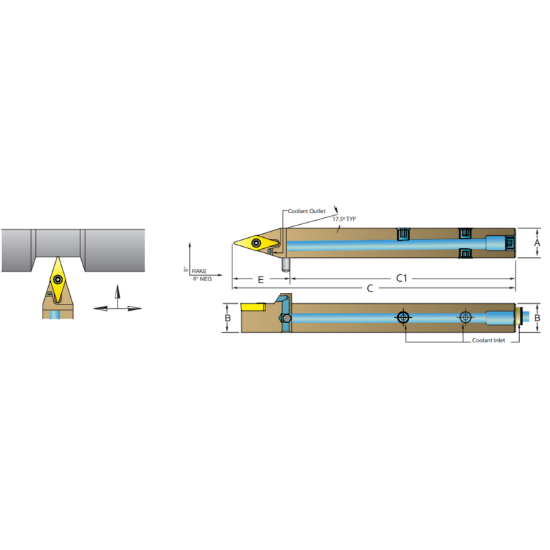

Picture of DORIAN ASVVCN08-2A 35.0° Swiss Square 0.500 Shank 4.000 OAL

DORIAN ASVVCN08-2A 35.0° Swiss Square 0.500 Shank 4.000 OAL

ANSI: ASVVCN08-2A

ISO: ASVVCN08-2A

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR60743
Delivery date: 3-5 days
$102.87

Features And Benefits

Qualified toolholder stop for repeatability when indexing an insert Zero tolerance when moved, locked & repositioned

Details

Quick-Disconnect Thru Coolant toolholder for swiss turning

Products specifications
Attribute name Attribute value
General Product Information
Application Ext.Turning, Swiss
Package Size 1
Insert Application General Purpose
Made In USA No
Insert/Tool Tool
Shipping State Texas
Insert Type Positive
Dimensional Specifications
Tool Over Hang 1.0000
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Tool Material Steel
Machine Side Connection Type Stick Tool
Overall Len 4.0000 101.60MM
Lead Angle 17.5°
Insert Size Ic 11 "21"
Machine Side Connection Size 0.5000 12.70MM
Tool Width 0.5000
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 35.0°
Inter/Extern External
Hand R/L Neutral
Coolant Thru Yes
Insert Style VC
