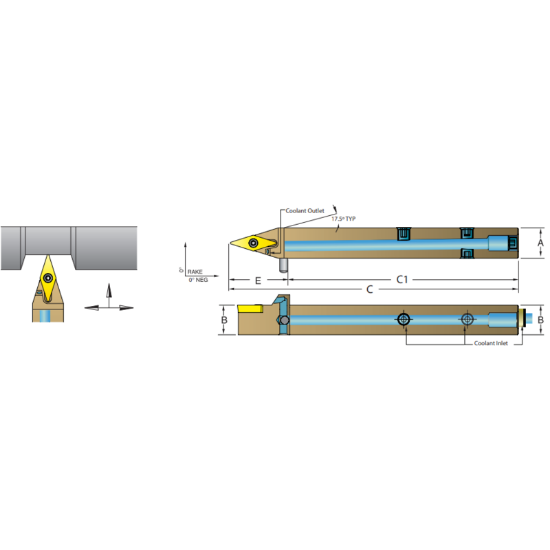

Picture of DORIAN ASVVBN1212-K16 35.0° Swiss Square 0.472 Shank 4.210 OAL

DORIAN ASVVBN1212-K16 35.0° Swiss Square 0.472 Shank 4.210 OAL

ANSI: ASVVBN1212-K16

ISO: ASVVBN1212-K16

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR60895
Delivery date: 3-5 days
$102.87

Features And Benefits

Qualified toolholder stop for repeatability when indexing an insert Zero tolerance when moved, locked & repositioned

Details

Quick-Disconnect Thru Coolant toolholder for swiss turning

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Type Positive
Application Ext.Turning, Swiss
Package Size 1
Insert Application General Purpose
Made In USA No
Shipping State Texas
Dimensional Specifications
Insert Size Ic 16 "33"
Lead Angle 17.5°
Shank/Pilot Dia 0.4724 12.00MM
Tool Over Hang 1.2600
Tool Material Steel
Machine Side Connection Type Stick Tool
Overall Len 4.2100 106.93MM
Machine Side Connection Size 0.4724 12.00MM
Tool Width 0.4720
Cutting & Machining Properties
Hand R/L Neutral
Coolant Thru Yes
Inter/Extern External
Insert Shape/Cutter Pocket Shape 35.0°
Insert Style VB
