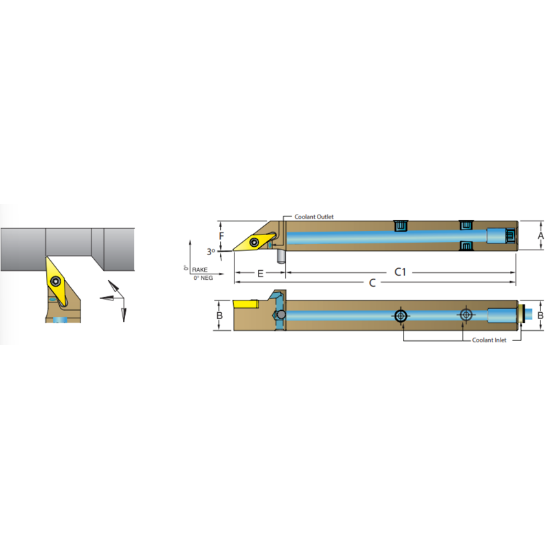

Picture of DORIAN ASVNPR1212-K16 35.0° Swiss Square 0.472 Shank 4.210 OAL

DORIAN ASVNPR1212-K16 35.0° Swiss Square 0.472 Shank 4.210 OAL

ANSI: ASVNPR1212-K16

ISO: ASVNPR1212-K16

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR60952
Delivery date: 3-5 days
$102.87

Features And Benefits

Qualified toolholder stop for repeatability when indexing an insert Zero tolerance when moved, locked & repositioned

Details

Quick-Disconnect Thru Coolant toolholder for swiss turning

Products specifications
Attribute name Attribute value
General Product Information
Application Ext.Turning, Swiss
Package Size 1
Insert Type Positive
Insert/Tool Tool
Shipping State Texas
Insert Application General Purpose
Made In USA No
Dimensional Specifications
Machine Side Connection Size 0.4724 12.00MM
Overall Len 4.2100 106.93MM
Tool Over Hang 1.2600
Insert Size Ic 11 "22"
Tool Material Steel
Machine Side Connection Type Stick Tool
Lead Angle 93°
Shank/Pilot Dia 0.4724 12.00MM
Clearance Angle 50.0°
Tool Width 0.4720
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 35.0°
Inter/Extern External
Coolant Thru Yes
Hand R/L Right
Insert Style VP
