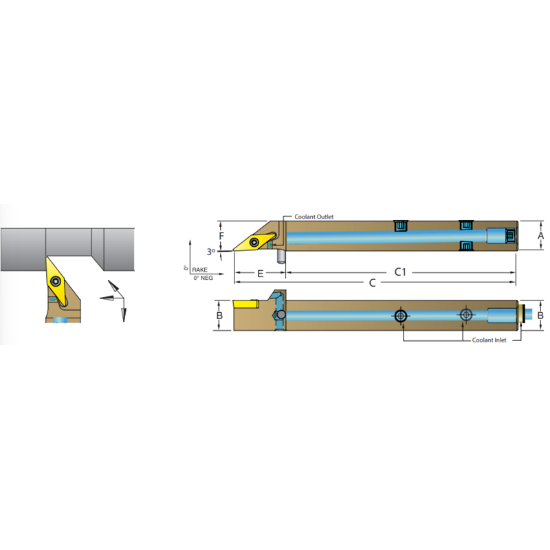

Picture of DORIAN ASVNPR1010-H11 35.0° Swiss Square 0.393 Shank 3.940 OAL

DORIAN ASVNPR1010-H11 35.0° Swiss Square 0.393 Shank 3.940 OAL

ANSI: ASVNPR1010-H11

ISO: ASVNPR1010-H11

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR60948
Delivery date: 3-5 days
$94.81

Features And Benefits

Qualified toolholder stop for repeatability when indexing an insert Zero tolerance when moved, locked & repositioned

Details

Quick-Disconnect Thru Coolant toolholder for swiss turning

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Application Swiss, Ext.Turning
Made In USA No
Package Size 1
Insert Type Positive
Shipping State Texas
Insert/Tool Tool
Dimensional Specifications
Insert Size Ic 08 "63"
Overall Len 3.9400 100.08MM
Clearance Angle 50.0°
Tool Width 0.3940
Lead Angle 93°
Shank/Pilot Dia 0.3937 10.00MM
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 0.3937 10.00MM
Tool Over Hang 0.9840
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 35.0°
Inter/Extern External
Coolant Thru Yes
Insert Style VP
Hand R/L Right
