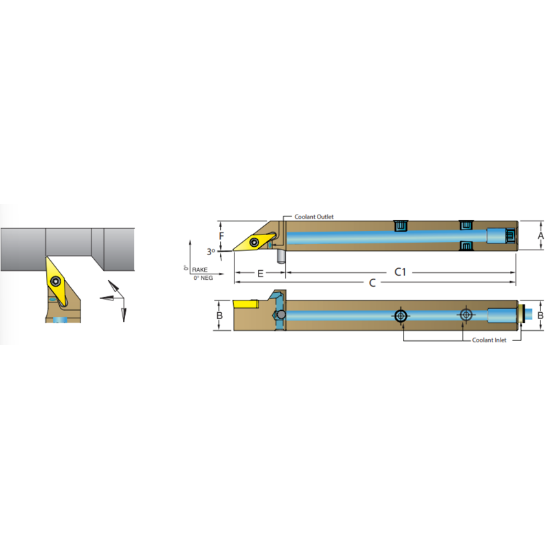

Picture of DORIAN ASVNPL1212-K16 35.0° Swiss Square 0.472 Shank 4.210 OAL

DORIAN ASVNPL1212-K16 35.0° Swiss Square 0.472 Shank 4.210 OAL

ANSI: ASVNPL1212-K16

ISO: ASVNPL1212-K16

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR60953
Delivery date: 3-5 days
$102.87

Features And Benefits

Qualified toolholder stop for repeatability when indexing an insert Zero tolerance when moved, locked & repositioned

Details

Quick-Disconnect Thru Coolant toolholder for swiss turning

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Insert Type Positive
Application Ext.Turning, Swiss
Package Size 1
Made In USA No
Insert Application General Purpose
Shipping State Texas
Dimensional Specifications
Tool Over Hang 1.2600
Clearance Angle 50.0°
Overall Len 4.2100 106.93MM
Machine Side Connection Size 0.4724 12.00MM
Insert Size Ic 11 "22"
Tool Material Steel
Machine Side Connection Type Stick Tool
Tool Width 0.4720
Lead Angle 93°
Shank/Pilot Dia 0.4724 12.00MM
Cutting & Machining Properties
Coolant Thru Yes
Insert Style VP
Insert Shape/Cutter Pocket Shape 35.0°
Inter/Extern External
Hand R/L Left
