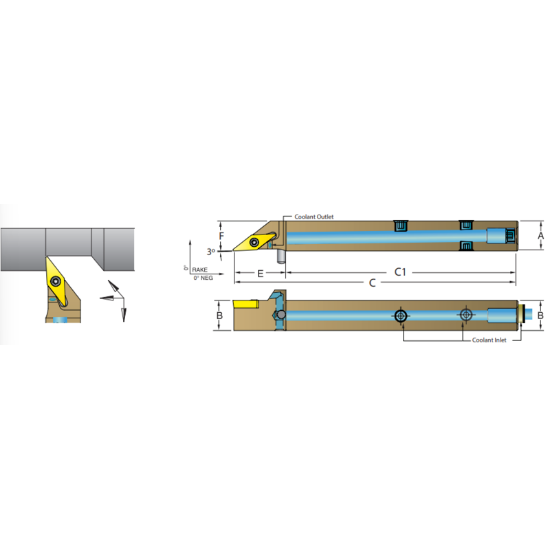

Picture of DORIAN ASVNPL1212-H11 35.0° Swiss Square 0.472 Shank 3.940 OAL

DORIAN ASVNPL1212-H11 35.0° Swiss Square 0.472 Shank 3.940 OAL

ANSI: ASVNPL1212-H11

ISO: ASVNPL1212-H11

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR60951
Delivery date: 3-5 days
$102.87

Features And Benefits

Qualified toolholder stop for repeatability when indexing an insert Zero tolerance when moved, locked & repositioned

Details

Quick-Disconnect Thru Coolant toolholder for swiss turning

Products specifications
Attribute name Attribute value
General Product Information
Insert/Tool Tool
Application Ext.Turning, Swiss
Package Size 1
Insert Type Positive
Shipping State Texas
Insert Application General Purpose
Made In USA No
Dimensional Specifications
Tool Material Steel
Machine Side Connection Type Stick Tool
Overall Len 3.9400 100.08MM
Tool Over Hang 0.9840
Clearance Angle 50.0°
Lead Angle 93°
Machine Side Connection Size 0.4724 12.00MM
Insert Size Ic 08 "63"
Shank/Pilot Dia 0.4724 12.00MM
Tool Width 0.4720
Cutting & Machining Properties
Coolant Thru Yes
Insert Style VP
Hand R/L Left
Insert Shape/Cutter Pocket Shape 35.0°
Inter/Extern External
