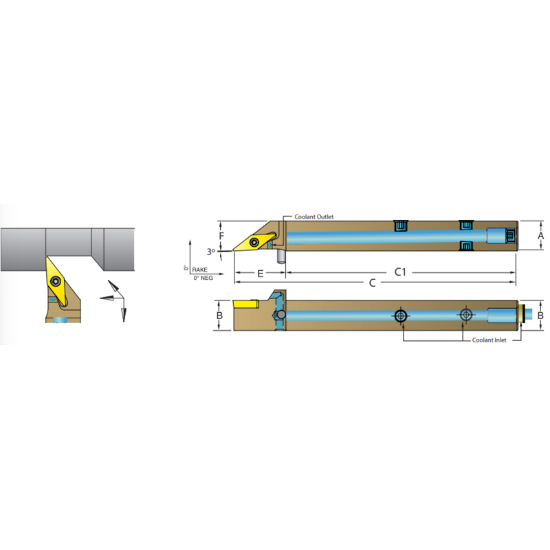

Picture of DORIAN ASVNPL1010-H11 35.0° Swiss Square 0.393 Shank 3.940 OAL

DORIAN ASVNPL1010-H11 35.0° Swiss Square 0.393 Shank 3.940 OAL

ANSI: ASVNPL1010-H11

ISO: ASVNPL1010-H11

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR60949
Delivery date: 3-5 days
$94.81

Features And Benefits

Qualified toolholder stop for repeatability when indexing an insert Zero tolerance when moved, locked & repositioned

Details

Quick-Disconnect Thru Coolant toolholder for swiss turning

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Shipping State Texas
Made In USA No
Application Ext.Turning, Swiss
Package Size 1
Insert Application General Purpose
Insert/Tool Tool
Dimensional Specifications
Tool Width 0.3940
Clearance Angle 50.0°
Lead Angle 93°
Insert Size Ic 08 "63"
Tool Material Steel
Machine Side Connection Type Stick Tool
Machine Side Connection Size 0.3937 10.00MM
Tool Over Hang 0.9840
Overall Len 3.9400 100.08MM
Shank/Pilot Dia 0.3937 10.00MM
Cutting & Machining Properties
Insert Style VP
Hand R/L Left
Insert Shape/Cutter Pocket Shape 35.0°
Inter/Extern External
Coolant Thru Yes
