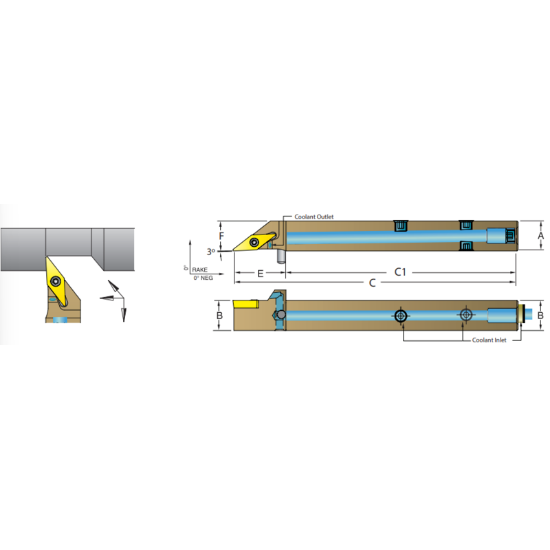

Picture of DORIAN ASVNPL08-3A 35.0° Swiss Square 0.500 Shank 4.250 OAL

DORIAN ASVNPL08-3A 35.0° Swiss Square 0.500 Shank 4.250 OAL

ANSI: ASVNPL08-3A

ISO: ASVNPL08-3A

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR60748
Delivery date: 3-5 days
$102.87

Features And Benefits

Qualified toolholder stop for repeatability when indexing an insert Zero tolerance when moved, locked & repositioned

Details

Quick-Disconnect Thru Coolant toolholder for swiss turning

Products specifications
Attribute name Attribute value
General Product Information
Insert Type Positive
Application Ext.Turning, Swiss
Package Size 1
Insert Application General Purpose
Made In USA No
Shipping State Texas
Insert/Tool Tool
Dimensional Specifications
Machine Side Connection Size 0.5000 12.70MM
Tool Width 0.5000
Overall Len 4.2500 107.95MM
Tool Over Hang 1.0000
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Lead Angle 93°
Clearance Angle 50.0°
Insert Size Ic 11 "22"
Tool Material Steel
Machine Side Connection Type Stick Tool
Cutting & Machining Properties
Insert Shape/Cutter Pocket Shape 35.0°
Inter/Extern External
Hand R/L Left
Insert Style VP
Coolant Thru Yes
