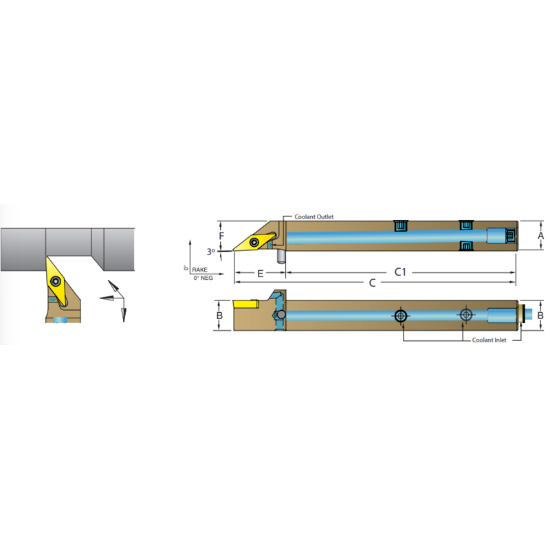

Picture of DORIAN ASVNPL08-2A 35.0° Swiss Square 0.500 Shank 4.000 OAL

DORIAN ASVNPL08-2A 35.0° Swiss Square 0.500 Shank 4.000 OAL

ANSI: ASVNPL08-2A

ISO: ASVNPL08-2A

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR60746
Delivery date: 3-5 days
$102.87

Features And Benefits

Qualified toolholder stop for repeatability when indexing an insert Zero tolerance when moved, locked & repositioned

Details

Quick-Disconnect Thru Coolant toolholder for swiss turning

Products specifications
Attribute name Attribute value
General Product Information
Package Size 1
Insert Application General Purpose
Application Swiss, Ext.Turning
Made In USA No
Shipping State Texas
Insert Type Positive
Insert/Tool Tool
Dimensional Specifications
Clearance Angle 50.0°
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Overall Len 4.0000 101.60MM
Lead Angle 93°
Tool Width 0.5000
Insert Size Ic 08 "63"
Machine Side Connection Size 0.5000 12.70MM
Tool Over Hang 1.0000
Tool Material Steel
Machine Side Connection Type Stick Tool
Cutting & Machining Properties
Insert Style VP
Coolant Thru Yes
Insert Shape/Cutter Pocket Shape 35.0°
Hand R/L Left
Inter/Extern External
