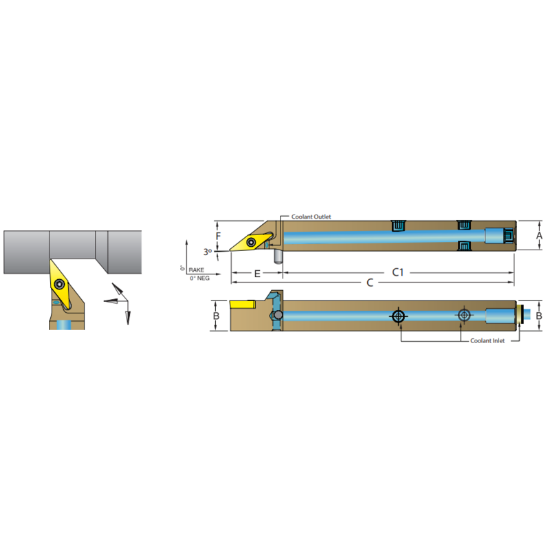

Picture of DORIAN ASVNCR1212-K16 35.0° Swiss Square 0.472 Shank 4.210 OAL

DORIAN ASVNCR1212-K16 35.0° Swiss Square 0.472 Shank 4.210 OAL

ANSI: ASVNCR1212-K16

ISO: ASVNCR1212-K16

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR60920
Delivery date: 3-5 days
$102.87

Features And Benefits

Qualified toolholder stop for repeatability when indexing an insert Zero tolerance when moved, locked & repositioned

Details

Quick-Disconnect Thru Coolant toolholder for swiss turning

Products specifications
Attribute name Attribute value
General Product Information
Insert Application General Purpose
Application Swiss, Ext.Turning
Made In USA No
Insert Type Positive
Package Size 1
Insert/Tool Tool
Shipping State Texas
Dimensional Specifications
Tool Material Steel
Machine Side Connection Type Stick Tool
Tool Width 0.4720
Overall Len 4.2100 106.93MM
Clearance Angle 50.0°
Lead Angle 93°
Insert Size Ic 16 "33"
Shank/Pilot Dia 0.4724 12.00MM
Tool Over Hang 1.2600
Machine Side Connection Size 0.4724 12.00MM
Cutting & Machining Properties
Insert Style VC
Inter/Extern External
Coolant Thru Yes
Hand R/L Right
Insert Shape/Cutter Pocket Shape 35.0°
