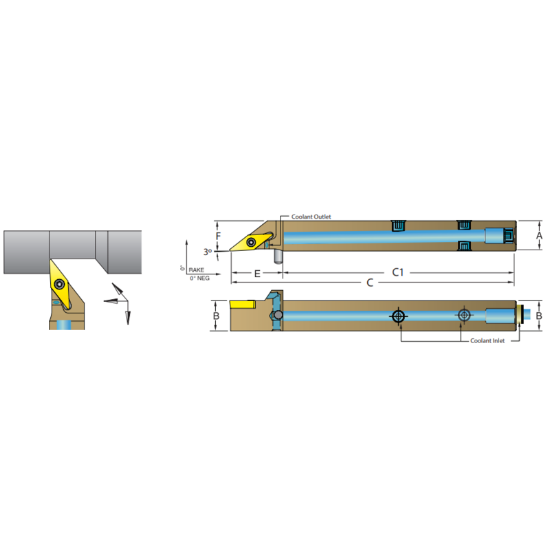

Picture of DORIAN ASVNCR08-3A 35.0° Swiss Square 0.500 Shank 4.250 OAL

DORIAN ASVNCR08-3A 35.0° Swiss Square 0.500 Shank 4.250 OAL

ANSI: ASVNCR08-3A

ISO: ASVNCR08-3A

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR60741
Delivery date: 3-5 days
$102.87

Features And Benefits

Qualified toolholder stop for repeatability when indexing an insert Zero tolerance when moved, locked & repositioned

Details

Quick-Disconnect Thru Coolant toolholder for swiss turning

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Insert Application General Purpose
Application Swiss, Ext.Turning
Made In USA No
Insert/Tool Tool
Insert Type Positive
Package Size 1
Dimensional Specifications
Lead Angle 93°
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Tool Material Steel
Machine Side Connection Type Stick Tool
Tool Over Hang 1.2500
Tool Width 0.5000
Insert Size Ic 16 "33"
Machine Side Connection Size 0.5000 12.70MM
Overall Len 4.2500 107.95MM
Clearance Angle 50.0°
Cutting & Machining Properties
Hand R/L Right
Insert Style VC
Inter/Extern External
Insert Shape/Cutter Pocket Shape 35.0°
Coolant Thru Yes
