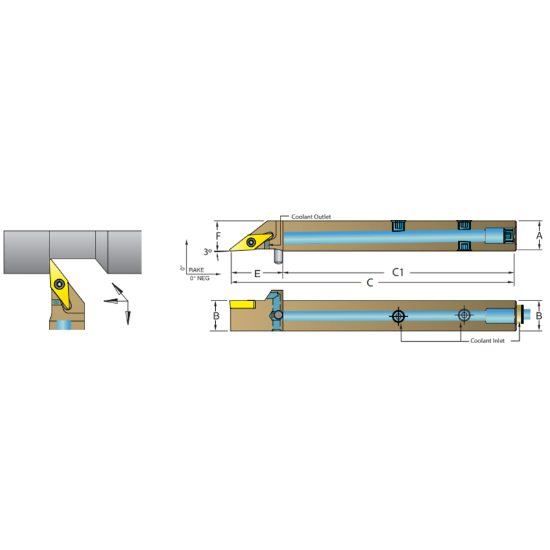

Picture of DORIAN ASVNCR08-2A 35.0° Swiss Square 0.500 Shank 4.000 OAL

DORIAN ASVNCR08-2A 35.0° Swiss Square 0.500 Shank 4.000 OAL

ANSI: ASVNCR08-2A

ISO: ASVNCR08-2A

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR60738
Delivery date: 3-5 days
$102.87

Features And Benefits

Qualified toolholder stop for repeatability when indexing an insert Zero tolerance when moved, locked & repositioned

Details

Quick-Disconnect Thru Coolant toolholder for swiss turning

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Insert Application General Purpose
Application Swiss, Ext.Turning
Made In USA No
Insert/Tool Tool
Package Size 1
Insert Type Positive
Dimensional Specifications
Insert Size Ic 11 "21"
Clearance Angle 50.0°
Tool Width 0.5000
Overall Len 4.0000 101.60MM
Shank/Pilot Dia 0.5000 12.70MM - 1/2
Tool Material Steel
Machine Side Connection Type Stick Tool
Tool Over Hang 1.0000
Machine Side Connection Size 0.5000 12.70MM
Lead Angle 93°
Cutting & Machining Properties
Coolant Thru Yes
Hand R/L Right
Insert Shape/Cutter Pocket Shape 35.0°
Inter/Extern External
Insert Style VC
