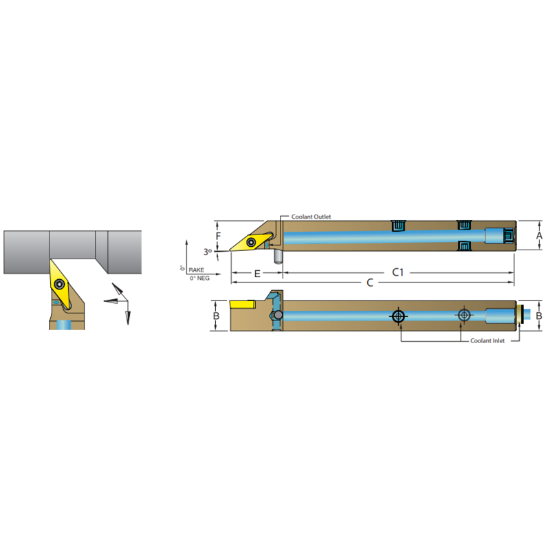

Picture of DORIAN ASVNCR06-2A 35.0° Swiss Square 0.375 Shank 4.000 OAL

DORIAN ASVNCR06-2A 35.0° Swiss Square 0.375 Shank 4.000 OAL

ANSI: ASVNCR06-2A

ISO: ASVNCR06-2A

Need Assistance or Service? Please call 262-251-4020

Manufacturer: DORIAN
SKU: DOR60737
Delivery date: 3-5 days
$94.81

Features And Benefits

Qualified toolholder stop for repeatability when indexing an insert Zero tolerance when moved, locked & repositioned

Details

Quick-Disconnect Thru Coolant toolholder for swiss turning

Products specifications
Attribute name Attribute value
General Product Information
Shipping State Texas
Insert/Tool Tool
Insert Type Positive
Application Ext.Turning, Swiss
Package Size 1
Insert Application General Purpose
Made In USA No
Dimensional Specifications
Overall Len 4.0000 101.60MM
Insert Size Ic 11 "21"
Tool Material Steel
Machine Side Connection Type Stick Tool
Tool Over Hang 0.9840
Clearance Angle 50.0°
Machine Side Connection Size 0.3750 9.53MM
Tool Width 0.3750
Lead Angle 93°
Shank/Pilot Dia 0.3750 9.53MM - 3/8
Cutting & Machining Properties
Hand R/L Right
Coolant Thru Yes
Insert Style VC
Inter/Extern External
Insert Shape/Cutter Pocket Shape 35.0°
